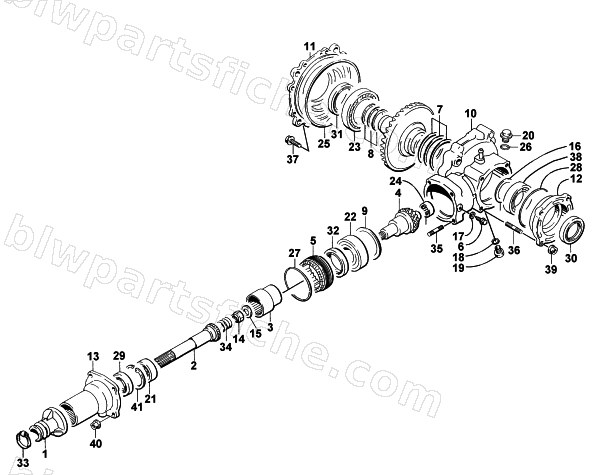

REAR BEVEL GEAR ASSEMBLY
1996 BEARCAT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3435-051 | BOOT, RR FINAL DRIVE SHAFT | 1 | $37.95 | |
| 2 | 3435-081 | SHAFT, REAR FINAL DRIVE | 1 | $268.95 | |
| 3 | 3435-082 | COUPLING, FINAL DRIVE GEAR | 1 | $181.95 | |
| 4 | 3435-083 | GEAR SET, FINAL BEVEL (NT:10/36) | 1 | $1,332.95 | |
| 5 | 3435-015 | STOPPER, FINAL DRIVE BEARING | 1 | $104.95 | |
| 6 | 3435-016 | PIN, BEARING STOPPER | 1 | $8.21 | |
| 7 | 3435-019 | SHIM SET, FINAL DRIVEN GEAR | 1 | $29.95 | |
| 8 | 3435-020 | SHIM SET, DRIVEN GEAR BEARING | 1 | $62.95 | |
| 9 | 3435-065 | SHIM SET | 1 | $58.95 | |
| 10 | 3435-023 | CASE COMP, FINAL GEAR | 1 | $1,275.95 | |
| 11 | 3435-100 | CASE,FINAL DRIVEN GEAR,RH | 1 | $354.95 | |
| 12 | 3435-027 | CASE, REAR FINAL DRIVEN GR,L | 1 | $213.95 | |
| 13 | 3435-028 | HOUSING, RR FINAL DRIVE | 1 | $227.95 | |
| 14 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 15 | 3423-029 | WASHER, 16X29X4 | 1 | $6.75 | |
| 16 | 3423-171 | WASHER, FINAL DRIVEN GR HUB, L,45MM | 1 | $10.97 | |
| 17 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 18 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 19 | 3403-021 | PLUG,DRAIN | 1 | $13.73 | |
| 20 | 3402-039 | PLUG,18MM | 1 | $20.63 | |
| 21 | 3402-052 | BALL BEARING ,M25X52X15 | 1 | $45.95 | |
| 22 | 3402-432 | BALL BEARING | 1 | $267.95 | |
| 23 | 3402-059 | BEARING, BALL (M70X110X13) | 1 | $156.95 | |
| 24 | 3402-061 | ROLLER BEARING,M20X34X18 | 1 | $87.95 | |
| 25 | 3423-173 | O-RING, BEARING CASE, R | 1 | $47.95 | |
| 26 | 3423-057 | O RING D:2.4 ID:17.8 | 1 | $10.97 | |
| 27 | 3423-065 | O RING | 1 | $10.97 | |
| 28 | 3003-335 | O RING,HEAD-INNER | 1 | $33.95 | |
| 29 | 3435-088 | SEAL,FINAL DRIVEN | 1 | $33.95 | |
| 30 | 3402-073 | OIL SEAL,M42X62X7 | 1 | $26.95 | |
| 31 | 3402-074 | OIL SEAL,M48X88X7 | 1 | $37.95 | |
| 32 | 3402-075 | OIL SEAL,M49X68X7 | 1 | $33.95 | |
| 33 | 3004-786 | CLAMP,M38 | 1 | $27.95 | |
| 34 | 3402-092 | SPRING,COMPRESSION,M32 | 1 | $3.57 | |
| 35 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 36 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 37 | 3007-377 | BOLT | 1 | $3.49 | |
| 38 | 3402-187 | BEARING,BALL(8.73MM DIA) | 1 | $114.95 | |
| 39 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 40 | 3423-868 | NUT | 1 | $3.02 | |
| 41 | 3423-875 | CIRCLIP | 1 | $9.95 |
