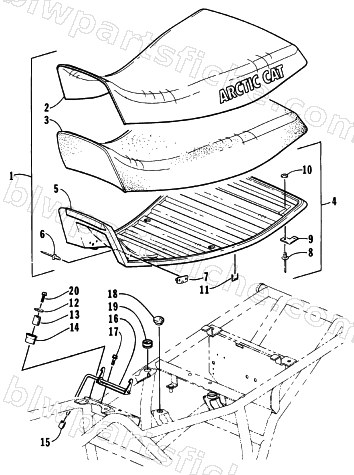

SEAT ASSEMBLY
1996 BEARCAT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5990-176 | SEAT-MFG ASSY | 1 | $264.95 | |
| 2 | 0506-054 | R/B 0406-404 | 1 | $143.95 | |
| 3 | 0506-056 | FOAM,SEAT | 1 | $95.95 | |
| 4 | 0506-167 | SEAT BASE-ASSY | 1 | $189.95 | |
| 5 | 0506-223 | BASE,SEAT - ASSY | 1 | $139.95 | |
| 6 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 7 | 1506-057 | PIN,SEATBASE-BLACK | 1 | $37.95 | |
| 8 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 9 | 0406-268 | PLATE,SEAT RETAINER | 1 | $3.95 | |
| 10 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 11 | 0624-263 | STAPLE,S.S. 3/8"PKG OF 1,250 ARROW | 1 | $133.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 0406-199 | COLLAR, FRONT SEAT BASE BUMPER | 1 | $5.92 | |
| 14 | 0406-171 | BUMPER,SEAT BASE-FR | 1 | $2.95 | |
| 16 | 1506-056 | LATCH,SEAT-BLACK | 1 | $62.95 | |
| 17 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 18 | 0406-270 | BUMPER,SEAT BASE-CTR | 1 | $20.95 | |
| 19 | 0406-172 | BUMPER,SEAT BASE-CTR | 1 | $8.95 | |
| 20 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 |
