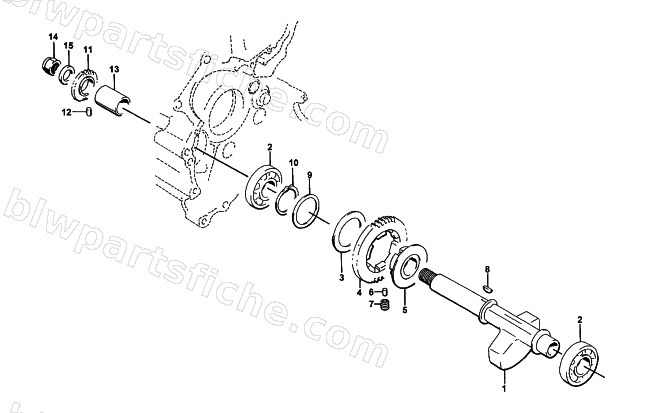

1997 Arctic Cat 2X4 — CRANK BALANCER ASSEMBLY
1997 2X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-126 | BALANCER, CRANKSHAFT | 1 | $199.95 | |
| 2 | 3402-050 | BEARING, M22X56X16 | 1 | $139.95 | |
| 3 | 3423-033 | WASHER, M38X50X1 | 1 | $4.95 | |
| 4 | 3402-128 | GEAR, CRANK BALANCER DRIVEN | 1 | $231.95 | |
| 5 | 3402-129 | RACE, CRK BAL DRIVEN GR INNER | 1 | $140.95 | |
| 6 | 3423-106 | PIN, CRK BAL DRIVEN GEAR,M4.5X9.5 | 1 | $6.34 | |
| 7 | 3402-090 | SPRING,COMPRESSION,M9 | 1 | $5.92 | |
| 8 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 9 | 3423-107 | WASHER, CRK BAL DRIVEN GEAR-M38X58 | 1 | $7.95 | |
| 10 | 3423-200 | CIRCLIP,FASTENER | 1 | $5.95 | |
| 11 | 3402-150 | GEAR, OIL PUMP DRIVE | 1 | $94.95 | |
| 12 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 13 | 3402-151 | SPACER, OIL PUMP DRIVE GR | 1 | $32.95 | |
| 14 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 15 | 3423-029 | WASHER, 16X29X4 | 1 | $6.75 |
