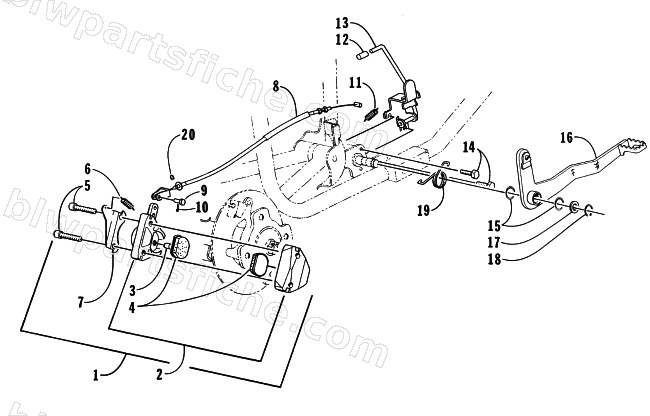

1997 Arctic Cat 2X4 — MECHANICAL BRAKE ASSEMBLY
1997 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0436-099 | KIT,SERVICE-MECH BRAKE | 1 | $192.95 | |
| 4 | 0502-020 | PAD SET,MECH BRAKE | 1 | $32.95 | |
| 5 | 0423-058 | SCREW,SOCKET HEAD 3/8"-16 X 1.75" CL & Z | 1 | $3.16 | |
| 6 | 0402-129 | SPRING,MECH BRAKE | 1 | $29.95 | |
| 7 | 0402-116 | BRKT,SPRING RETAINER-MECH BRAKE | 1 | $42.95 | |
| 8 | 0487-004 | CABLE,BRAKE RR | 1 | $62.95 | |
| 9 | 0423-049 | PIN,BRAKE CABLE RETAINER | 1 | $1.64 | |
| 11 | 0115-602 | SPRING,BRAKE ARM RETURN | 1 | $47.95 | |
| 12 | 0423-064 | CAP,PROTECTOR-RED(1/4 ID) | 1 | $2.95 | |
| 13 | 0502-035 | BRAKE,PARKING-WELD'T | 1 | $79.95 | |
| 14 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 15 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 16 | 0502-095 | LEVER,FOOT BRAKE-BLACK-REAMED | 1 | $59.95 | |
| 17 | 0423-027 | WASHER,BRAKE LVR | 1 | $2.95 | |
| 18 | 0623-237 | SNAP RING,EXTL-5/8 DIA | 1 | $1.92 | |
| 19 | 0502-409 | SPRING,FOOTBRAKE-BLACK | 1 | $54.95 | |
| 20 | 0124-057 | E-RING | 1 | $1.64 |
