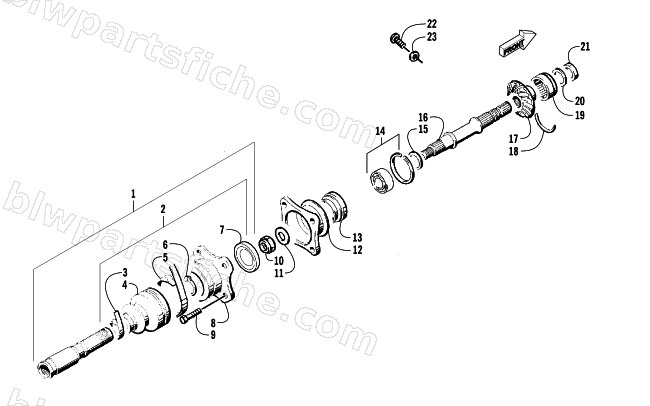

1997 Arctic Cat 2X4 — SECONDARY DRIVE ASSEMBLY
1997 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3435-010 | JOINT ASSY, REAR OUTPUT | 1 | $679.95 | |
| 2 | 3435-066 | BOOT SET, JOINT | 1 | $140.95 | |
| 3 | 3423-212 | CLAMP | 1 | $23.39 | |
| 4 | 3435-067 | BOOT | 1 | $50.95 | |
| 5 | 3423-211 | CLAMP | 1 | $30.95 | |
| 6 | 3423-210 | RING, SNAP | 1 | $12.95 | |
| 7 | 3423-356 | SEAL PLATE | 1 | $32.95 | |
| 9 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 11 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 12 | 3402-514 | FLANGE, RR OUTPUT JOINT | 1 | $212.95 | |
| 13 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 14 | 3403-210 | BEARING,REAR OUTPUT SHAFT RR | 1 | $106.95 | |
| 15 | 3402-017 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-018 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-019 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-020 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3403-217 | SHIM,25X34X0.8 | 1 | $5.92 | |
| 15 | 3402-022 | SHIM,25MM | 1 | $5.95 | |
| 15 | 3402-023 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3402-024 | SHIM,25MM | 1 | $5.92 | |
| 15 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 15 | 3402-028 | SHIM,25MM | 1 | $6.20 | |
| 15 | 3402-029 | SHIM,25MM | 1 | $6.47 | |
| 15 | 3402-030 | SHIM,25MM | 1 | $6.47 | |
| 15 | 3402-031 | SHIM,25MM | 1 | $6.47 | |
| 16 | 3446-037 | SHAFT, SEC DRIVEN OUTPUT, RR | 1 | $381.95 | |
| 17 | 3446-222 | GEAR,SEC DRIVEN BEVEL | 1 | $292.95 | |
| 18 | 3423-072 | C RING,M50 | 1 | $5.78 | |
| 19 | 3402-515 | BEARING, SEC DRIVEN GEAR,M (30X50X17) | 1 | $79.95 | |
| 20 | 3423-137 | WASHER, SEC DRIVEN GEAR-M22X36 | 1 | $6.34 | |
| 21 | 3423-136 | NUT, SEC DRIVEN GEAR,22MM | 1 | $19.25 | |
| 22 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 23 | 3423-135 | RETAINER, CNTR SHAFT BRG-M6X16 | 1 | $5.92 |
