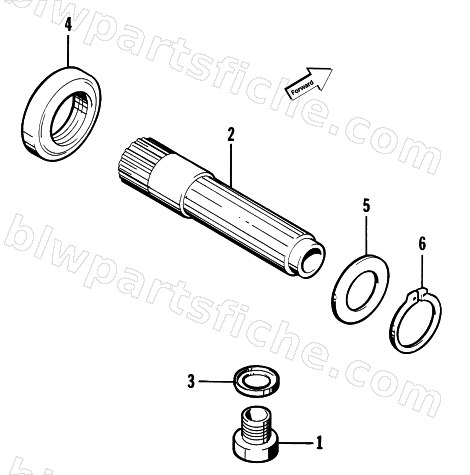

1997 Arctic Cat 2X4 — SHIFTER ASSEMBLY
1997 2X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-046 | PLUG, OIL | 1 | $20.63 | |
| 2 | 3446-076 | SHAFT, SUB T/M GEAR SHIFT | 1 | $227.95 | |
| 3 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 4 | 3402-071 | OIL SEAL ,M30X56X6 | 1 | $26.95 | |
| 5 | 3006-489 | SHIM,30X38X1 | 1 | $10.97 | |
| 6 | 3423-913 | CIRCLIP,FASTENER | 1 | $5.95 |
