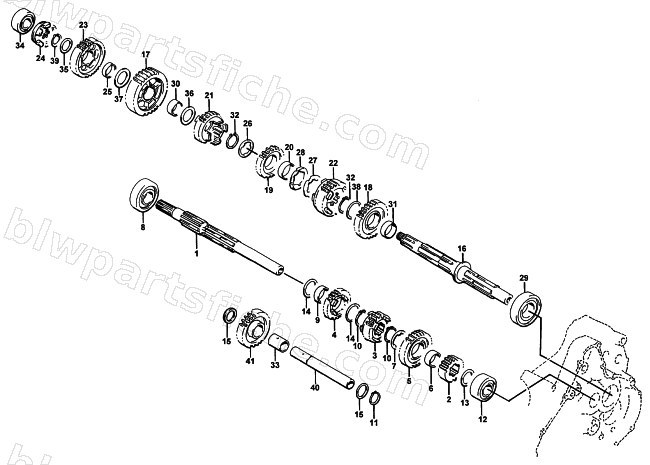

TRANSMISSION ASSEMBLY

1997 2X4

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3446-014	SHAFT, COUNTER	1	$341.95
2	3446-016	GEAR, 2ND DRIVE	1	$180.95
3	3446-017	GEAR, 3RD DRIVE	1	$160.95
4	3446-018	GEAR, 4TH DRIVE	1	$196.95
5	3446-019	GEAR, 5TH DRIVE	1	$196.95
6	3446-020	BUSHING	1	$37.95
7	3423-037	WASHER,25MM	1	$2.95
8	3402-049	BEARING, M22X56X16	1	$135.95
9	3402-081	BUSH,M25X29X10	1	$37.95
10	3423-066	CIRCLIP,M25	1	$6.47
11	3423-865	CIRCLIP	1	$4.54
12	3402-179	BEARING, CNTR SHAFT M(BALL)(7.9375MM DIA	1	$151.95
13	3402-195	SHIM,20MM	1	$4.95
14	3423-187	WASHER,M25X36	1	$3.30
15	3423-126	WASHER, 2ND DRIVE GR-M20X30	1	$2.95
16	3446-015	SHAFT, DRIVE	1	$350.95
17	3446-235	GEAR,1ST DRIVEN	1	$169.95
18	3446-022	GEAR, 2ND DRIVEN	1	$196.95
19	3446-023	GEAR, 3RD DRIVEN	1	$203.95
20	3446-024	BUSH, 4TH DRIVEN GEAR	1	$37.95
21	3446-219	GEAR, 4TH DRIVEN	1	$181.95
22	3446-026	GEAR, 5TH DRIVEN	1	$235.95
23	3446-029	GEAR, REVERSE DRIVEN	1	$169.95
24	3446-030	DOG, REVERSE	1	$122.95
25	3446-032	BUSH, REVERSE DRIVEN GR	1	$37.95
26	3423-038	WASHER, LOCK,25MM	1	$4.13
27	3423-039	WASHER, LOCK,28MM	1	$4.95
28	3423-040	WASHER, LOCK,28MM	1	$3.30
29	3402-053	BALL BEARING ,M28X58X16	1	$104.95
30	3402-692	BUSHING,M22	1	$30.95
31	3402-082	BUSH,M28	1	$37.95
32	3423-866	CIRCLIP	1	$4.82
33	3402-079	BUSH ,M20X24X26	1	$27.95
34	3003-320	BEARING,BALL,RIGHT,M17X40X12	1	$34.95
35	3423-129	WASHER, REVERSE DRIVEN GR-M22X34	1	$3.95
36	3423-130	WASHER, 1ST DRIVEN GEAR, L-M22X34	1	$3.95
37	3423-131	WASHER, 1ST DRIVEN GEAR, R-M22X40	1	$4.54
38	3003-605	WASHER,CRANKPIN-RH (1.0)(M28X36)	1	$5.95
39	3423-892	CIRCLIP,FASTENER	1	$4.95
40	3446-027	SHAFT, REVERSE IDLE	1	$73.95
41	3446-028	GEAR, REVERSE IDLE	1	$180.95
