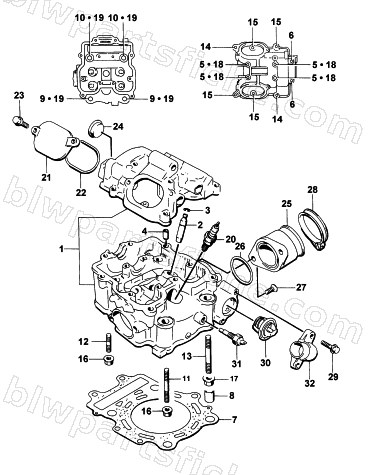

CYLINDER HEAD ASSEMBLY
1997 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3402-539 | GASKET SET, ( 400 ATV ) | 1 | $244.95 | |
| 1 | 3402-098 | HEAD ASSY, CYLINDER(400,454 ATV) | 1 | $1,630.95 | |
| 2 | 3402-099 | GUIDE, VALVE | 1 | $52.95 | |
| 3 | 3423-068 | CIRCLIP,M10 | 1 | $3.30 | |
| 4 | 3423-043 | PIN,ALIGNMENT,8MM | 1 | $9.59 | |
| 5 | 3423-006 | BOLT, 6X55 | 1 | $3.02 | |
| 6 | 3007-395 | BOLT | 1 | $3.44 | |
| 7 | 3402-163 | GASKET, CYLINDER HEAD | 1 | $94.95 | |
| 8 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 9 | 3423-015 | BOLT, L:190,10MM | 1 | $17.95 | |
| 10 | 3423-016 | BOLT, L:200,10MM | 1 | $17.87 | |
| 11 | 3007-480 | BOLT,STUD | 1 | $2.06 | |
| 12 | 3423-864 | BOLT,STUD | 1 | $2.06 | |
| 13 | 3423-862 | BOLT,STUD | 1 | $4.54 | |
| 14 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 15 | 3007-380 | BOLT | 1 | $3.16 | |
| 16 | 3007-373 | NUT | 1 | $3.16 | |
| 17 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 18 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 19 | 3402-010 | GASKET, HEAD NUT,10MM | 1 | $5.37 | |
| 20 | 0217-705 | SPARK PLUG(NGK CR8E) | 1 | $10.97 | |
| 21 | 3402-100 | CAP, INSPECTION | 1 | $48.95 | |
| 22 | 3402-101 | O RING, INSPECTION CAP | 1 | $12.35 | |
| 23 | 3007-409 | BOLT | 1 | $3.16 | |
| 24 | 3402-035 | PLUG, CYLINDER HEAD,25MM | 1 | $17.87 | |
| 25 | 3402-149 | PIPE ASSY, INTAKE | 1 | $112.95 | |
| 26 | 3423-332 | O-RING (D:1.9, ID:40.7) | 1 | $20.95 | |
| 27 | 3423-019 | SCREW, 6X16 | 1 | $3.02 | |
| 28 | 3402-086 | CLAMP,M50 | 1 | $12.35 | |
| 30 | 3413-015 | THERMOSTAT | 1 | $108.95 | |
| 32 | 3413-004 | COVER, THERMOSTAT | 1 | $82.95 | |
| 33 | 3402-048 | PLUG,16MM | 1 | $10.97 |
