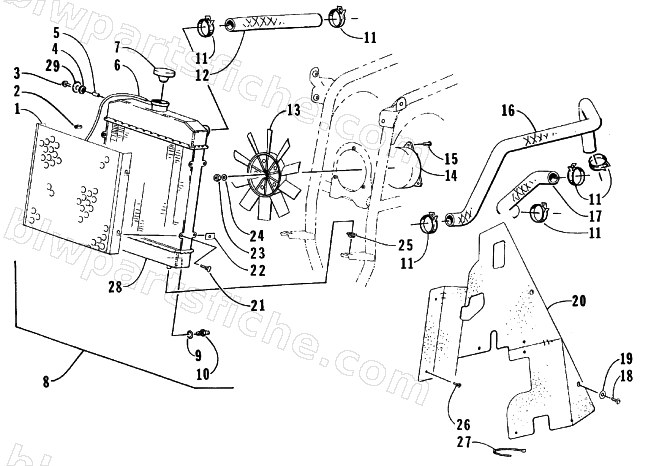

COOLING ASSEMBLY
1998 500 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 2 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 3 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 4 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 5 | 0423-036 | COLLAR,.375" OD X.26" ID X.375" | 1 | $20.63 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 8 | 0413-001 | RADIATOR-ASSY | 1 | $394.95 | |
| 10 | 0430-010 | SENSOR, HEAT-RADIATOR | 1 | $104.95 | |
| 11 | 0423-070 | CLAMP,HOSE-SPRING(32mm) (USE 1623-321) | 1 | $4.95 | |
| 12 | 0410-002 | HOSE,COOLANT-UPR | 1 | $49.95 | |
| 13 | 0413-006 | BLADE,FAN | 1 | $49.95 | |
| 15 | 8474-516 | SCREW,MACH-TSFH M5X0.8X16 CL8.8 BLK | 1 | $0.68 | |
| 16 | 0410-001 | HOSE,COOLANT-LWR | 1 | $83.95 | |
| 17 | 0410-003 | HOSE,COOLANT-CROSS OVER | 1 | $30.95 | |
| 18 | 8474-616 | SCREW,MACH-TSFH M6X1.0X16 CL8.8 BLK | 1 | $12.35 | |
| 19 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 20 | 0406-200 | PANEL,INR FENDER | 1 | $48.95 | |
| 21 | 0413-009 | THUMB SCREW-RAD | 1 | $6.95 | |
| 22 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 23 | 0423-056 | NUT,M8-1.25 LH THREAD | 1 | $0.45 | |
| 24 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 25 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 26 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 |
