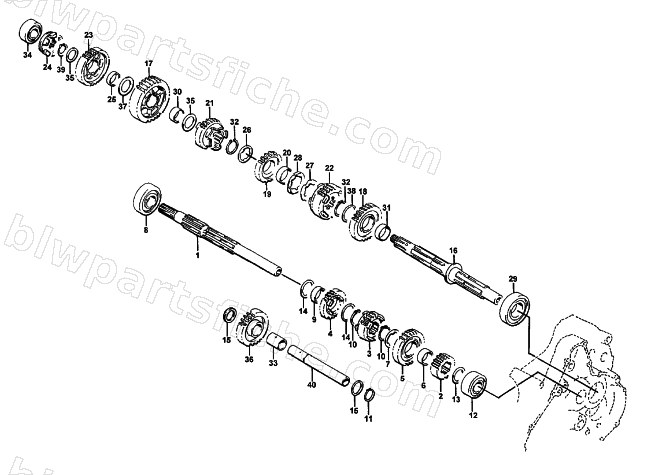

TRANSMISSION ASSEMBLY

1998 500 4X4

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3446-014	SHAFT, COUNTER	1	$341.95
2	3446-016	GEAR, 2ND DRIVE	1	$180.95
3	3446-215	GEAR, 3RD DRIVE	1	$144.95
4	3446-018	GEAR, 4TH DRIVE	1	$196.95
5	3446-216	GEAR, 5TH DRIVE	1	$164.95
6	3446-020	BUSHING	1	$37.95
7	3423-037	WASHER,25MM	1	$2.95
8	3402-050	BEARING, M22X56X16	1	$139.95
9	3402-081	BUSH,M25X29X10	1	$37.95
10	3423-066	CIRCLIP,M25	1	$6.47
11	3423-865	CIRCLIP	1	$4.54
12	3402-179	BEARING, CNTR SHAFT M(BALL)(7.9375MM DIA	1	$151.95
13	3402-195	SHIM,20MM	1	$4.95
14	3423-187	WASHER,M25X36	1	$3.30
15	3423-126	WASHER, 2ND DRIVE GR-M20X30	1	$2.95
16	3446-234	SHAFT,DRIVE	1	$390.95
17	3446-235	GEAR,1ST DRIVEN	1	$169.95
18	3446-022	GEAR, 2ND DRIVEN	1	$196.95
19	3446-218	GEAR, 3RD DRIVEN	1	$180.95
20	3446-024	BUSH, 4TH DRIVEN GEAR	1	$37.95
21	3446-219	GEAR, 4TH DRIVEN	1	$181.95
22	3446-220	GEAR, 5TH DRIVEN	1	$181.95
23	3446-029	GEAR, REVERSE DRIVEN	1	$169.95
24	3446-030	DOG, REVERSE	1	$122.95
25	3446-032	BUSH, REVERSE DRIVEN GR	1	$37.95
26	3423-038	WASHER, LOCK,25MM	1	$4.13
27	3423-039	WASHER, LOCK,28MM	1	$4.95
28	3423-040	WASHER, LOCK,28MM	1	$3.30
29	3402-336	BEARING,M28	1	$90.95
30	3402-692	BUSHING,M22	1	$30.95
31	3402-082	BUSH,M28	1	$37.95
32	3423-866	CIRCLIP	1	$4.82
33	3446-238	BUSHING,REVERSE IDLE GEAR	1	$35.95
34	3003-320	BEARING,BALL,RIGHT,M17X40X12	1	$34.95
35	3402-335	WASHER,22MM	1	$4.95
36	3446-237	GEAR,REVERSE IDLE	1	$164.95
37	3423-131	WASHER, 1ST DRIVEN GEAR, R-M22X40	1	$4.54
38	3402-383	WASHER,M28X36X1	1	$4.95
39	3423-892	CIRCLIP,FASTENER	1	$4.95
40	3446-236	SHAFT,REVERSE IDLE	1	$76.95
