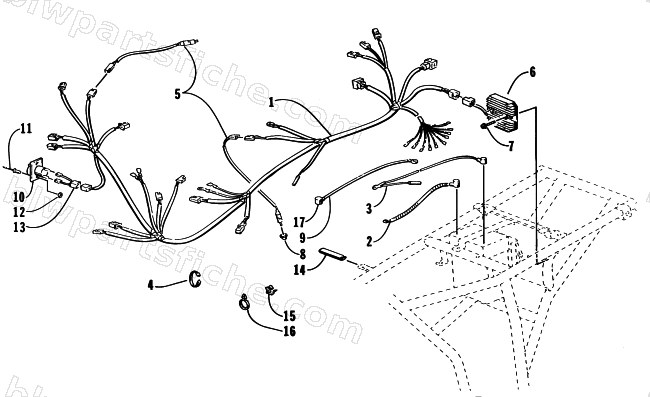

1998 Arctic Cat 500 4X4 — WIRING HARNESS ASSEMBLY
1998 500 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-007 | HARNESS,MAIN | 1 | $499.95 | |
| 2 | 0445-003 | CABLE,BATTERY-SOLENOID (16" RED #8) | 1 | $29.95 | |
| 3 | 0445-002 | CABLE,BATT/GRND(BLK) | 1 | $34.95 | |
| 4 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 5 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 6 | 3430-072 | RECTIFIER ASSY | 1 | $414.95 | |
| 7 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 8 | 0402-168 | RETAINER,SWITCH | 1 | $10.95 | |
| 9 | 0445-004 | CABLE,BATT/EL ST MTR (RED) | 1 | $29.95 | |
| 10 | 0445-001 | RECEPTACLE,12V ACC | 1 | $30.95 | |
| 11 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 12 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 13 | 0486-004 | HARNESS,12V RECEPTICAL | 1 | $10.97 | |
| 14 | 0406-266 | SLEEVE,CABLE CLIP | 1 | $1.95 | |
| 15 | 0423-065 | BASE,WIRE TIE(AS23TA00120BL) ASC | 1 | $1.95 | |
| 16 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 17 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 |
