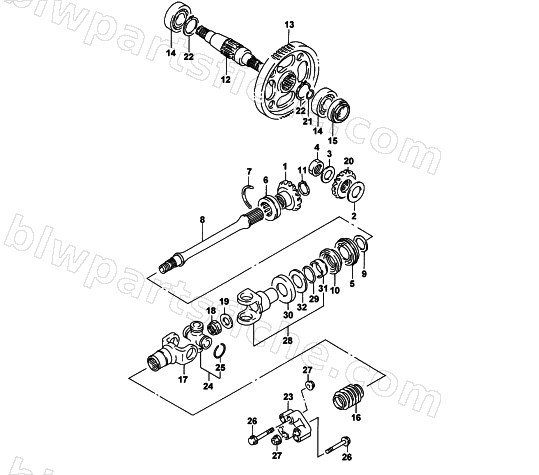

1999 Arctic Cat 250 2X4 — SECONDARY GEAR/PROPELLER SHAFT ASSEMBLY
1999 250 2X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 10 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 12 | 3446-176 | SHAFT,R FINAL DRIVEN | 1 | $316.95 | |
| 13 | 3446-175 | GEAR,R FINAL DRIVEN | 1 | $378.95 | |
| 14 | 3402-219 | BEARING,M25X62X17 | 1 | $58.95 | |
| 21 | 3423-281 | RING,SNAP,M24 | 1 | $3.95 | |
| 22 | 3423-321 | CIRCLIP,FASTENER | 1 | $5.37 |
