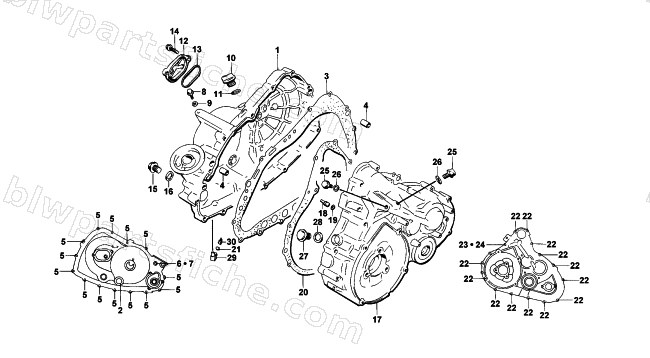

1999 Arctic Cat 400 4X4 — CRANKCASE COVER ASSEMBLY
1999 400 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-199 | COVER, CLUTCH | 1 | $682.95 | |
| 12 | 3402-100 | CAP, INSPECTION | 1 | $48.95 | |
| 15 | 3402-037 | PLUG,14MM | 1 | $10.97 | |
| 17 | 3402-106 | COVER SET, TRANSFER | 1 | $486.95 | |
| 25 | 3007-407 | BOLT,GROUND | 1 | $3.16 |
