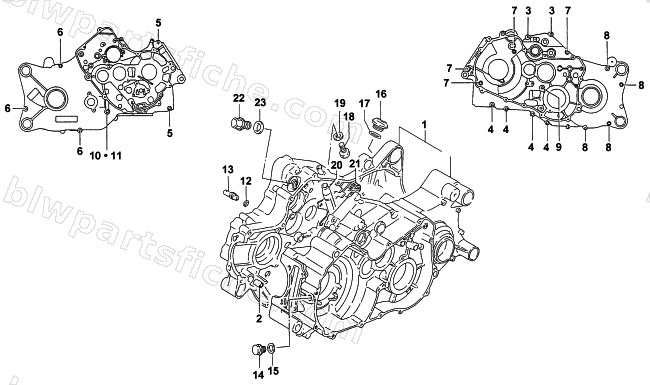

CRANKCASE ASSEMBLY
2000 250 2X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-528 | CRANKCASE, SET | 1 | $2,887.95 | |
| 2 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 3 | 3007-504 | BOLT,OIL PAN | 1 | $2.75 | |
| 4 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 5 | 3423-878 | BOLT,CRANKCASE-M6X45 | 1 | $3.30 | |
| 6 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 7 | 3423-896 | BOLT,M6X60 | 1 | $4.54 | |
| 8 | 3423-094 | BOLT, CRANKCASE-M6X90 | 1 | $4.54 | |
| 9 | 3423-232 | BOLT,8X90 | 1 | $6.95 | |
| 10 | 3423-234 | BOLT,8X60 | 1 | $2.95 | |
| 11 | 3005-243 | GASKET,M8.5X17X2.3 | 1 | $6.34 | |
| 12 | 3423-051 | O RING | 1 | $2.75 | |
| 13 | 3402-245 | JET,OIL GALY | 1 | $33.95 | |
| 14 | 3402-214 | PLUG,14MM | 1 | $9.59 | |
| 15 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 16 | 3402-212 | CAP, OIL FILLER | 1 | $20.63 | |
| 17 | 3423-274 | O RING,D:3.1ID:26.4 | 1 | $6.47 | |
| 18 | 3402-404 | PLUG, M12X20 | 1 | $5.37 | |
| 19 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 20 | 3402-413 | PIPE, BREATHER | 1 | $35.95 | |
| 21 | 3402-250 | SEPARATOR,OIL BREATHER | 1 | $32.95 | |
| 22 | 3402-258 | PLUG,REVERSE SWITCH | 1 | $20.63 | |
| 23 | 3423-271 | O RING,D:3.2,ID:15.8 | 1 | $3.95 |
