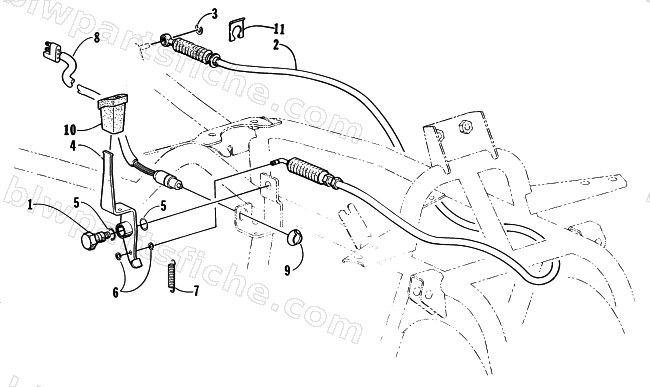

2000 Arctic Cat 300 2X4 () — REVERSE SHIFT LEVER ASSEMBLY
2000 300 2X4 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-239 | AXLE,REVERSE SHIFTER | 1 | $30.95 | |
| 2 | 0487-009 | CABLE,REVERSE | 1 | $224.95 | |
| 3 | 3423-860 | E RING | 1 | $3.30 | |
| 4 | 0437-036 | KIT,REVERSE LEVER REPLACEMENT | 1 | $164.95 | |
| 5 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 6 | 0423-063 | E-RING(IRR 1000-18) | 1 | $0.68 | |
| 7 | 0402-802 | SPRING, REV LEVER | 1 | $20.63 | |
| 8 | 0409-008 | REVERSE SWITCH | 1 | $56.95 | |
| 9 | 0402-168 | RETAINER,SWITCH | 1 | $10.95 | |
| 10 | 0402-062 | KNOB,REVERSE SHIFT LVR | 1 | $12.35 | |
| 11 | 3423-282 | CLIP,SHIFT CABLE,M19 | 1 | $6.34 |
