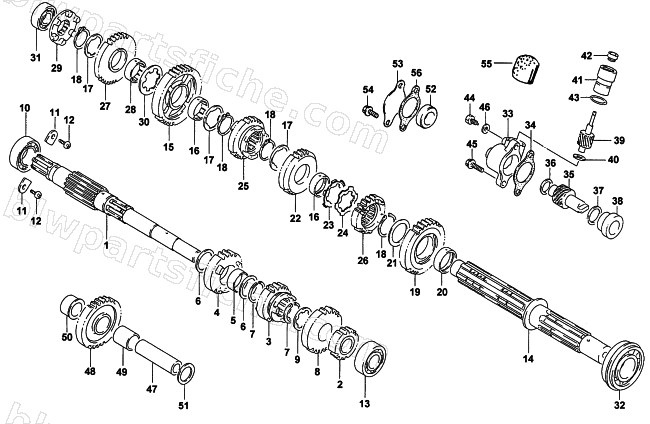

TRANSMISSION ASSEMBLY

2000 300 2X4 ()

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3446-277	SHAFT, COUNTER	1	$306.95
2	3446-137	GEAR,2ND DRIVE	1	$164.95
3	3446-138	GEAR,3RD DRIVE	1	$164.95
4	3446-139	GEAR,4TH DRIVE	1	$169.95
5	3402-229	BUSHING,M22	1	$30.95
6	3402-210	WASHER,M22X30X1.0	1	$2.95
7	3423-279	CIRCLIP,M22	1	$9.59
8	3446-140	GEAR,5TH DRIVE	1	$164.95
9	3423-791	WASHER	1	$3.57
10	0691-374	BALL BEARING ,M20X50X14	1	$36.95
11	3446-031	RETAINER, BEARING	1	$5.78
12	3007-574	SCREW,6X12	1	$2.47
13	3402-224	BEARING,M17X40X17.5	1	$140.95
14	3402-797	DRIVESHAFT	1	$461.95
15	3446-141	GEAR,1ST DRIVEN	1	$169.95
16	3446-273	BUSHING, DRIVEN, GEAR	1	$33.95
17	3423-036	WASHER,25MM	1	$4.54
18	3423-066	CIRCLIP,M25	1	$6.47
19	3446-142	GEAR,2ND DRIVEN	1	$164.95
20	3402-230	BUSHING,M25X29X8	1	$30.95
21	3423-317	WASHER,M25X35	1	$3.02
22	3446-143	GEAR,3RD DRIVEN	1	$164.95
23	3423-266	WASHER,LOCK,25MM	1	$2.61
24	3423-262	WASHER,LOCK,25MM	1	$4.54
25	3446-146	GEAR,4TH DRIVEN	1	$196.95
26	3446-147	GEAR,5TH DRIVEN	1	$151.95
27	3446-151	GEAR,REVERSE DRIVEN	1	$196.95
28	3446-145	BUSHING, REVERSE DRIVEN GEAR	1	$32.95
29	3446-152	DOG,REVERSE	1	$118.95
30	3423-263	WASHER,LOCK,25MM	1	$4.54
31	3402-218	BALL BEARING,M17X35X10	1	$76.95
32	3402-220	BEARING,BALL,M25X52X15	1	$69.95
47	3446-148	SHAFT,REVERSE IDLE	1	$56.95
48	3446-149	GEAR,REVERSE IDLE	1	$169.95
49	3402-228	BUSHING,M17	1	$20.63
50	3446-150	SPACER,GEAR	1	$30.95
51	3402-209	WASHER,M17X28X1.0	1	$3.71
52	3402-255	PLUG,TRANSFER COVER HOLE	1	$20.63
53	3446-153	RETAINER,TRANSFER COVER	1	$6.95
54	3423-231	BOLT,6X100	1	$3.57
55	0402-160	CAP,SPEEDO DRIVE	1	$13.95
56	3446-244	GASKET,ODOMETER GEAR SLV	1	$13.73
