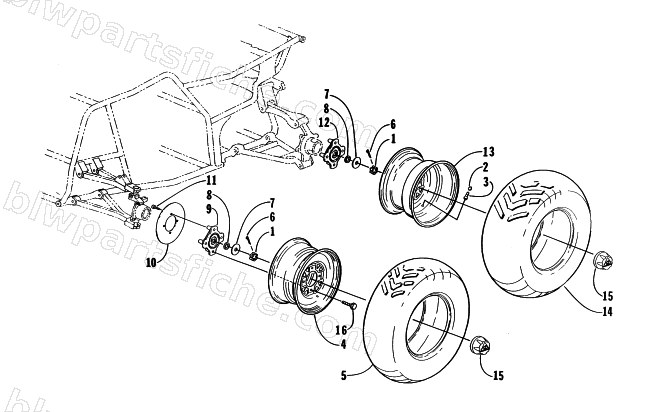

WHEEL AND TIRE ASSEMBLY
2000 300 2X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-213 | NUT,HEX-SLOTTED-18MM-1.5 | 1 | $10.97 | |
| 2 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 4 | 0402-375 | WHEEL,12X6.5-SVR | 1 | $109.95 | |
| 5 | 0402-316 | TIRE,23 X 8-12 - TITAN AT489A | 1 | $130.95 | |
| 6 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 7 | 0423-080 | WASHER,WHEEL 18MM | 1 | $3.85 | |
| 8 | 0402-181 | SEAL,HUB | 1 | $1.64 | |
| 9 | 1502-177 | KIT,REPLACEMENT HUB WITH NUTS | 1 | $239.95 | |
| 10 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 11 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 14 | 0402-319 | TIRE,25X10-12 - TITAN AT489A | 1 | $159.95 | |
| 15 | 0403-035 | CAP,WHEEL-CTR | 1 | $12.35 | |
| 16 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 |
