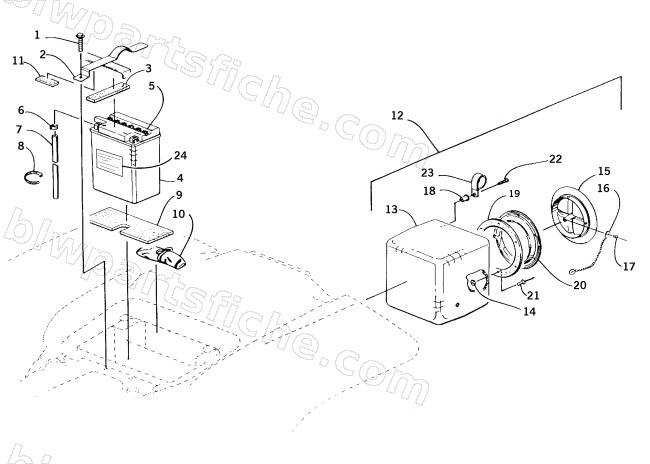

2000 Arctic Cat 400 4X4 () — STORAGE BOX AND BATTERY ASSEMBLY
2000 400 4X4 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 2 | 0506-178 | STRAP,BATTERY W/PAD | 1 | $26.95 | |
| 3 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 4 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 9 | 0406-227 | PAD,BATTERY-LOWER | 1 | $3.57 | |
| 10 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 11 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 12 | 0506-102 | TOOL BOX-ASSY | 1 | $114.95 | |
| 22 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 23 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 24 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 |
