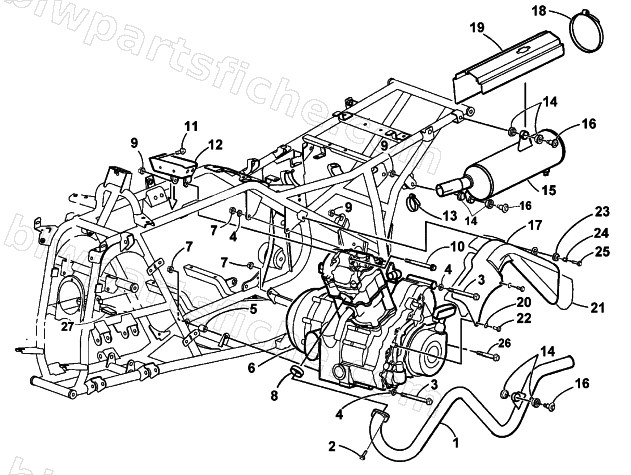

ENGINE AND EXHAUST
2000 500 CC AUTOMATIC ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 3 | 3423-009 | BOLT, 10X215 | 1 | $10.97 | |
| 4 | 0423-050 | WASHER, MOTOR MOUNT | 1 | $2.95 | |
| 5 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 6 | 0462-013 | ENGINE,ELT500A-4WDY- ASSY(FROM 0463-013) | 1 | $5,971.95 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 9 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 11 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 0506-374 | BRKT,UPR MTR-CTR WELD'T | 1 | $54.95 | |
| 13 | 0423-150 | CLAMP,EXHAUST (NORMA ARS-M8-39.5) | 1 | $27.95 | |
| 14 | 0412-033 | BUSHING,EXHAUST | 1 | $16.95 | |
| 15 | 0512-161 | MUFFLER-BLACK (0412-156) | 1 | $1,018.95 | |
| 17 | 1506-376 | COVER,EXHAUST PIPE-PTD BLK | 1 | $86.95 | |
| 18 | 0423-079 | CLAMP,HOSE-5" SIZE 72 | 1 | $5.95 | |
| 19 | 0406-298 | PLATE,HEAT-MUFFLER | 1 | $26.95 | |
| 20 | 8053-213 | R/B 8053-212 | 1 | $0.65 | |
| 21 | 0412-054 | SHIELD,HEAT | 1 | $17.95 | |
| 21 | 0412-055 | SHIELD,HEAT | 1 | $14.95 | |
| 22 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 23 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 24 | 0423-036 | COLLAR,.375" OD X.26" ID X.375" | 1 | $20.63 | |
| 25 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 26 | 3423-391 | BOLT, (M10X180) | 1 | $10.97 | |
| 27 | 0406-555 | PAD, BATTERY | 1 | $17.87 |
