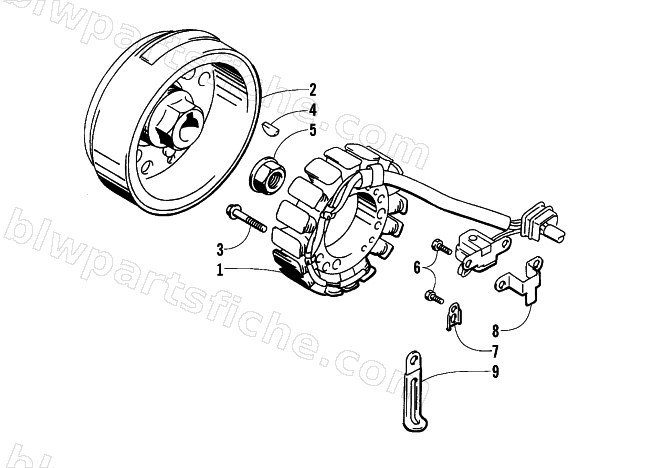

MAGNETO ASSEMBLY
2000 500 CC AUTOMATIC ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3430-045 | STATOR ASSY | 1 | $945.95 | |
| 2 | 3430-046 | ROTOR | 1 | $986.95 | |
| 3 | 3007-504 | BOLT,OIL PAN | 1 | $2.75 | |
| 4 | 0691-785 | KEY(FASTENER) | 1 | $4.95 | |
| 5 | 3423-086 | NUT, MAGNETO ROTOR | 1 | $13.73 | |
| 6 | 3423-005 | BOLT, 5X10 | 1 | $2.61 | |
| 7 | 3430-005 | CLAMP, GENERATOR LEAD WIRE B | 1 | $3.44 | |
| 8 | 3430-006 | CLAMP, MAGNETO LEAD | 1 | $13.73 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
