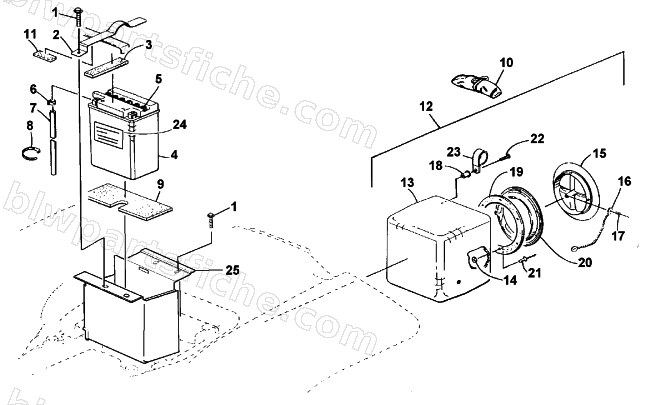

2000 Arctic Cat 500 CC AUTOMATIC () — STORAGE BOX AND BATTERY ASSEMBLY
2000 500 CC AUTOMATIC ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 2 | 0506-399 | STRAP,BATTERY W/ PAD | 1 | $24.95 | |
| 3 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 4 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0406-556 | PAD,BATTERY | 1 | $13.95 | |
| 10 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 11 | 0406-548 | PAD, BATTERY-TOP FR | 1 | $61.95 | |
| 12 | 0506-102 | TOOL BOX-ASSY | 1 | $114.95 | |
| 14 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 15 | 0406-208 | LID,TOOLBOX | 1 | $13.73 | |
| 16 | 0773-401 | CHAIN STORAGE MFG ASSY | 1 | $10.97 | |
| 17 | 8061-223 | RIVET,BLIND-LF AA42 BLACK | 1 | $0.15 | |
| 18 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 19 | 0673-973 | SEAL, STORAGE COVER | 1 | $106.95 | |
| 20 | 0406-205 | RING,MNTG-TOOL BOX LID | 1 | $13.95 | |
| 21 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 22 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 23 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 24 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 25 | 0406-814 | BOX, BATTERY | 1 | $110.95 |
