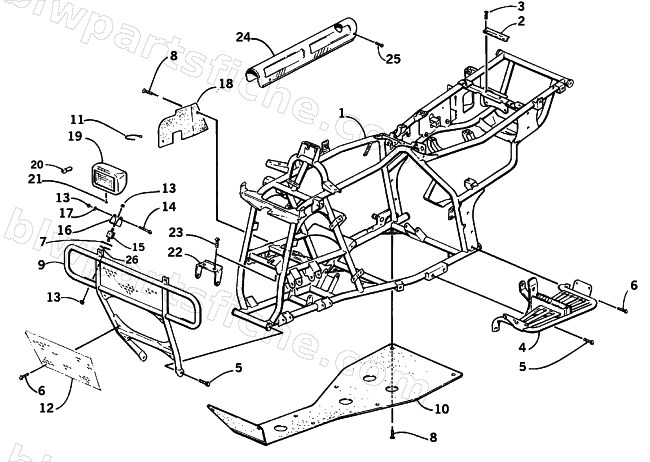

FRAME AND RELATED PARTS
2001 250 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-677 | FRAME, MAIN-ASSY (250/300) | 1 | $981.95 | |
| 2 | 0506-962 | BRACKET,BODY HOLD DOWN-BLACK | 1 | $10.97 | |
| 3 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 4 | 0506-959 | FOOTREST, RH - BLACK | 1 | $328.95 | |
| 4 | 0506-217 | FOOTREST, LHW/FOOTSHIFT BLACK | 1 | $151.95 | |
| 5 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 3423-204 | WASHER | 1 | $1.95 | |
| 8 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 9 | 0506-485 | GUARD,BRUSH-WELDMENT(PAINTED) | 1 | $178.95 | |
| 9 | 0506-408 | GUARD,BRUSH-WELDMENT-PTD BLK | 1 | $286.95 | |
| 10 | 0406-354 | PANEL,BELLY | 1 | $163.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0406-390 | SCREEN,BRUSH GUARD-LWR | 1 | $54.95 | |
| 13 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 15 | 0406-762 | MOUNT, HEADLIGHT | 1 | $20.63 | |
| 16 | 0406-261 | YOKE,HEADLIGHT | 1 | $4.40 | |
| 17 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 18 | 0406-300 | PANEL,INR FENDER | 1 | $11.95 | |
| 19 | 0409-001 | HEAD LIGHT-ASSY | 1 | $118.95 | |
| 20 | 0409-005 | BULB,HEAD LIGHT | 1 | $32.95 | |
| 21 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 22 | 0506-210 | BRKT, FR GEAR CASE-UPR BLACK | 1 | $25.95 | |
| 23 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 24 | 0406-371 | COVER,FRONT DRIVE SHAFT | 1 | $51.95 | |
| 25 | 8471-610 | SCREW,MACH-TSPNH M6X1.0X10 CL8.8 Z&B | 1 | $0.55 | |
| 26 | 0623-710 | WASHER,LOCK HI-COLLAR METRIC | 1 | $0.40 |
