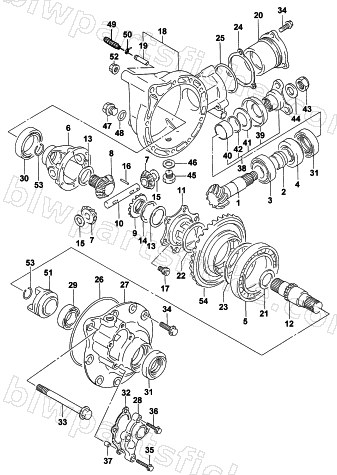

DIFFERENTIAL GEAR ASSEMBLY (4X4)
2001 250 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3435-068 | GEAR,FINAL BEVEL | 1 | $314.95 | |
| 2 | 3402-016 | SPACER,25MM | 1 | $56.95 | |
| 3 | 3402-065 | BEARING TAPER ROLLER, M25X52X19.25 | 1 | $133.95 | |
| 4 | 3402-066 | BEARING,TAPER ROLLER (M25X52X16.25) | 1 | $114.95 | |
| 5 | 3402-059 | BEARING, BALL (M70X110X13) | 1 | $156.95 | |
| 6 | 3435-076 | CASE,FR DIFF | 1 | $261.95 | |
| 7 | 3435-071 | PINION | 1 | $114.95 | |
| 8 | 3435-072 | GEAR,FR DIF | 1 | $252.95 | |
| 9 | 3435-080 | GEAR,REAR DIFF | 1 | $135.95 | |
| 10 | 3435-073 | SHAFT,DIFF SIDE PINION | 1 | $32.95 | |
| 11 | 3435-070 | HUB,BEVEL GEAR | 1 | $339.95 | |
| 12 | 3435-097 | SHAFT,FR.DRIVEN OUTPUT | 1 | $190.95 | |
| 13 | 3423-294 | WASHER,M29X40X0.8 | 1 | $3.30 | |
| 13 | 3423-295 | WASHER,T:1.0,29MM | 1 | $3.30 | |
| 13 | 3423-296 | WASHER,M29X40X1.2 | 1 | $3.02 | |
| 14 | 3423-297 | WASHER,M29.1X41X0.4 | 1 | $10.97 | |
| 15 | 3423-293 | WASHER,13.3X25X0.85 | 1 | $1.78 | |
| 16 | 3402-309 | PIN,PINION SHAFT,6MM | 1 | $13.95 | |
| 17 | 3423-309 | BOLT (8X16) | 1 | $3.57 | |
| 18 | 3435-077 | HOUSING,FR DIFF GEAR | 1 | $718.59 | |
| 19 | 3402-084 | UNION,M8 | 1 | $4.95 | |
| 20 | 3435-021 | HOUSING, FR DRIVE BEVEL GR | 1 | $187.95 | |
| 21 | 3423-317 | WASHER,M25X35 | 1 | $3.02 | |
| 22 | 3435-017 | SHIM SET, FR DRIVEN BVL GR | 1 | $56.95 | |
| 23 | 3435-020 | SHIM SET, DRIVEN GEAR BEARING | 1 | $62.95 | |
| 24 | 3435-022 | SHIM SET FR DRIVE BEVEL HSG | 1 | $50.95 | |
| 25 | 3423-064 | O RING D:2.4 ID:62.6 | 1 | $10.97 | |
| 26 | 3423-050 | O RING D:2.4 ID:131.4 | 1 | $26.95 | |
| 27 | 3435-078 | CASE,FR DRIVEN GEAR BRG | 1 | $314.95 | |
| 28 | 3435-079 | COVER, GEAR CASE | 1 | $91.95 | |
| 29 | 3402-185 | BRG, FR DRIVEN OUTPUT(BALL)(6.34MM DIA) | 1 | $58.95 | |
| 30 | 3402-057 | BALL BEARING ,M40X62X12 | 1 | $126.95 | |
| 31 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 32 | 3402-323 | GASKET,GEAR CASE | 1 | $6.75 | |
| 33 | 3423-010 | BOLT, 10X110 | 1 | $5.51 | |
| 34 | 3007-377 | BOLT | 1 | $3.49 | |
| 35 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 36 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 37 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 38 | 3435-089 | FLANGE,FR DRIVE BEVEL GR | 1 | $205.95 | |
| 39 | 3423-034 | WASHER,30MM | 1 | $5.51 | |
| 40 | 3435-029 | COLLAR, OUTPUT OIL SEAL | 1 | $45.95 | |
| 41 | 3435-030 | PLATE, OUTPUT YOKE OIL SEAL | 1 | $20.63 | |
| 42 | 3423-060 | O RING D:1 ID:28 | 1 | $4.40 | |
| 43 | 3423-178 | NUT, FR DRIVE BVL GR,16MM | 1 | $3.30 | |
| 44 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 45 | 3403-021 | PLUG,DRAIN | 1 | $13.73 | |
| 46 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 47 | 3402-038 | PLUG, HEX HEAD,16MM | 1 | $12.35 | |
| 48 | 3423-054 | O RING D:2.4 ID:16.8 | 1 | $13.73 | |
| 49 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 50 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 51 | 3435-075 | DOG DIFF LOCK SLIDING | 1 | $129.95 | |
| 52 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 53 | 3423-070 | RING,M22 | 1 | $3.57 | |
| 54 | 3435-069 | GEAR,DRIVEN BEVEL | 1 | $471.95 | |
| 350201 | 3402-203 | GEAR CASE,FR W/LEVER | 1 | $3,839.95 |
