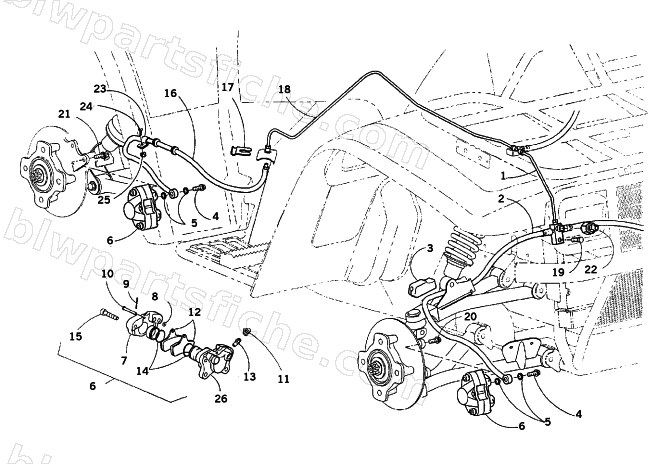

HYDRAULIC BRAKE ASSEMBLY
2001 250 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-053 | TUBE,BRAKE LINE-FR | 1 | $193.95 | |
| 1 | 0402-373 | TUBE,BRAKE LINE FR | 1 | $32.95 | |
| 2 | 0402-880 | HOSE, BRAKE, FR | 1 | $132.95 | |
| 2 | 0402-307 | HOSE,BRAKE-FR W/SWITCH FITTING | 1 | $167.95 | |
| 3 | 0402-073 | BLOCK,MOUNT-BRAKE HOSE | 1 | $10.95 | |
| 4 | 0423-389 | BOLT,BANJO FITTING | 1 | $12.35 | |
| 5 | 0423-039 | WASHER,CRUSH | 1 | $3.30 | |
| 6 | 0402-010 | CALIPER,BRAKE-RH | 1 | $324.95 | |
| 6 | 0402-011 | CALIPER,BRAKE-LH | 1 | $324.95 | |
| 8 | 0402-490 | O-RING, HYD BRAKE CALIPER | 1 | $1.78 | |
| 9 | 0423-495 | PIN, COTTER -1/16" X 1/2" | 1 | $0.65 | |
| 10 | 0402-495 | PIN,HYD BRAKE CALIPER-(OL) | 1 | $3.57 | |
| 12 | 0402-882 | PAD, BRAKE | 1 | $29.95 | |
| 13 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 14 | 0402-487 | O-RING-HYD BRAKE CALIPER-(OL) | 1 | $17.87 | |
| 15 | 0402-492 | SCREW, CAP-HSH-HYD BRAKE(OL) | 1 | $1.50 | |
| 16 | 0402-881 | HOSE, BRAKE, RR | 1 | $86.95 | |
| 17 | 0402-597 | CLIP, BRAKE LINE-PLATED | 1 | $9.59 | |
| 18 | 0402-170 | TUBE,BRAKE LINE-RR | 1 | $40.95 | |
| 19 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 20 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 21 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 0402-306 | SWITCH,BRAKE PRESSURE | 1 | $129.95 | |
| 23 | 0123-269 | CLAMP,CABLE,11/16 INSUL | 1 | $2.75 | |
| 24 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 25 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 |
