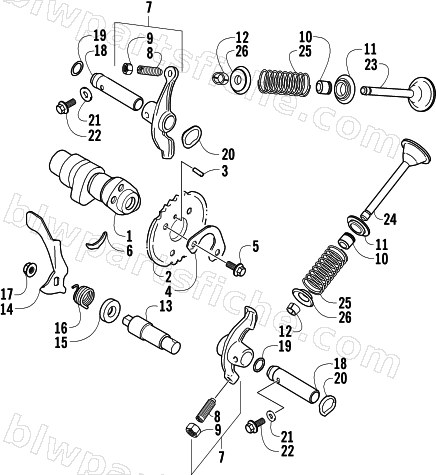

CAMSHAFT/VALVE ASSEMBLY
2001 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-397 | CAMSHAFT | 1 | $260.95 | |
| 1 | 3402-275 | CAMSHAFT | 1 | $260.95 | |
| 2 | 3402-427 | SPROCKET, CAMSHAFT | 1 | $56.95 | |
| 2 | 3402-545 | SPROCKET (NT:34) | 1 | $66.95 | |
| 3 | 3423-047 | PIN,M5X8 | 1 | $3.95 | |
| 4 | 3423-880 | WASHER | 1 | $3.30 | |
| 5 | 3423-886 | BOLT,SPROCKET | 1 | $3.95 | |
| 6 | 3423-071 | C RING,M22 | 1 | $4.40 | |
| 7 | 3402-288 | ARM,VALVE ROCKER | 1 | $126.95 | |
| 8 | 3423-287 | SCREW | 1 | $6.34 | |
| 9 | 3423-288 | NUT | 1 | $3.71 | |
| 10 | 3402-226 | SEAL,OIL,M5 | 1 | $19.25 | |
| 11 | 3402-403 | SEAT, VALVE SPRING | 1 | $17.87 | |
| 11 | 3402-294 | SEAT,VALVE SPRING | 1 | $13.73 | |
| 12 | 0693-281 | COTTER, VALVE | 1 | $3.16 | |
| 13 | 3402-295 | SHAFT,DECOMP | 1 | $47.95 | |
| 14 | 3402-296 | LEVER,DECOMP SHAFT | 1 | $12.35 | |
| 15 | 3402-225 | SEAL,OIL,M10 | 1 | $17.87 | |
| 16 | 3402-242 | SPRING | 1 | $6.95 | |
| 17 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 18 | 3402-289 | SHAFT,VALVE ROCKER | 1 | $32.95 | |
| 19 | 3423-052 | O RING, D:1.9, ID:8.6 | 1 | $10.97 | |
| 20 | 3423-259 | WASHER,12MM | 1 | $2.33 | |
| 21 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 22 | 0693-416 | BOLT,M6X25 | 1 | $2.06 | |
| 23 | 3402-290 | VALVE,INTAKE | 1 | $85.95 | |
| 24 | 3402-291 | VALVE,EXHAUST | 1 | $118.95 | |
| 25 | 3402-401 | SPRING, VALVE | 1 | $30.95 | |
| 25 | 3402-292 | SPRING, VALVE-SET | 1 | $29.95 | |
| 26 | 3402-402 | RETAINER, VALVE SPRING | 1 | $23.39 | |
| 26 | 3403-235 | RETAINER,VALVE SPRING | 1 | $20.63 |
