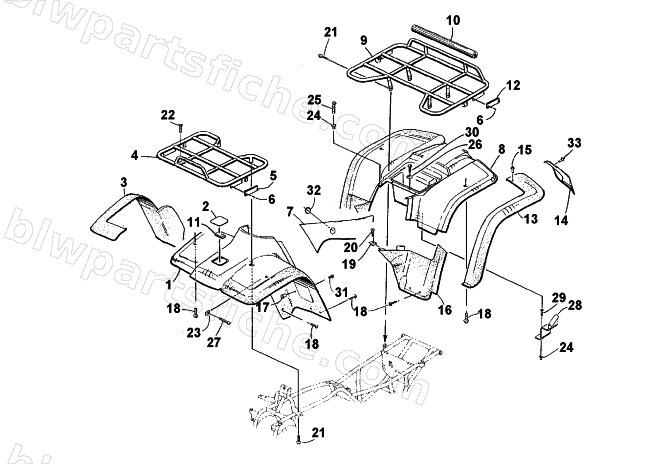

BODY PANEL ASSEMBLY
2001 400 4X4 (MANUAL TRANSMISSION)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-239 | PANEL,FENDER-FR ROUTED-RED | 1 | $395.95 | |
| 1 | 0506-365 | PANEL,FENDER-FR-ROUTED-GREEN | 1 | $243.95 | |
| 1 | 0506-406 | PANEL, FENDER-FR-ROUTED- RED | 1 | $628.95 | |
| 1 | 0506-405 | PANEL, FENDER-FR-ROUTED- GREEN | 1 | $395.95 | |
| 2 | 1406-142 | COVER,ACCESS-RED (W/LOGO) | 1 | $20.95 | |
| 3 | 0406-140 | FLARE,FR RH MOLDED-ECONO-BLACK | 1 | $74.95 | |
| 3 | 0406-141 | FLARE,FR LH (ECONO) BLACK | 1 | $79.95 | |
| 3 | 0406-080 | FLARE-FR-RH-MOLD-UTIL-BLACK | 1 | $135.95 | |
| 3 | 0406-081 | FLARE-FR-LH-MOLDED-UTIL-BLACK | 1 | $120.95 | |
| 4 | 0506-409 | RACK, FRONT-WELDMENT(300 4X,400) | 1 | $455.95 | |
| 4 | 0506-407 | RACK, FRONT (500) | 1 | $283.95 | |
| 5 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0506-480 | PANEL, SIDE-RH-ROUTED-RED | 1 | $36.95 | |
| 7 | 0506-487 | PANEL,SIDE RH-ROUTED RED | 1 | $31.95 | |
| 7 | 0506-243 | PANEL,SIDE-LH ROUTED - RED | 1 | $36.95 | |
| 7 | 0506-479 | PANEL, SIDE-RH-ROUTED-GREEN | 1 | $91.95 | |
| 7 | 0506-486 | PANEL,SIDE RH-ROUTED-GREEN | 1 | $187.95 | |
| 7 | 0506-165 | PANEL,SIDE-LH ROUTED-GREEN | 1 | $314.95 | |
| 8 | 0506-240 | PANEL,FENDER-RR ROUTED-RED | 1 | $317.95 | |
| 8 | 0506-366 | PANEL,FENDER-RR-ROUTED-GREEN | 1 | $474.95 | |
| 8 | 0506-307 | PANEL,FENDER-RR ROUTED-RED | 1 | $729.95 | |
| 8 | 0506-157 | PANEL,FENDER-RR ROUTED-GREEN | 1 | $474.95 | |
| 9 | 0506-190 | RACK,RR-(BLACK) | 1 | $929.95 | |
| 9 | 0506-821 | RACK,REAR-W/FENCE-BLACK | 1 | $1,130.95 | |
| 10 | 0406-293 | WRAP,TUBE-RR RACK | 1 | $41.95 | |
| 11 | 0417-002 | FOAM,RADIATOR ACCESS PANEL-CTL | 1 | $4.95 | |
| 12 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 13 | 0406-082 | FLARE-RR-RH-MOLDED-BLACK | 1 | $55.95 | |
| 13 | 0406-083 | FLARE-RR-LH-MOLD-BLACK | 1 | $55.95 | |
| 14 | 0406-558 | MUD FLAP, RH-MOLDED-BLACK | 1 | $35.95 | |
| 14 | 0406-559 | MUD FLAP, LH-MOLDED-BLACK | 1 | $33.95 | |
| 15 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 16 | 0406-084 | FENDER EXTENSION-RH-MOLDED-BLACK | 1 | $158.95 | |
| 16 | 0406-085 | FENDER EXTENSION-LH-MOLDED-BLACK | 1 | $90.95 | |
| 16 | 0506-160 | FENDER EXTENSION, RH-ROUTED-BLACK | 1 | $163.95 | |
| 16 | 0506-161 | FENDER EXTENSION, LH-ROUTED-BLACK | 1 | $163.95 | |
| 17 | 0423-077 | NUT,T-W/TEETH (6MM) | 1 | $3.44 | |
| 18 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 19 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 20 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 21 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 22 | 8477-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&BLK | 1 | $1.09 | |
| 23 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 24 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 25 | 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | 1 | $0.35 | |
| 26 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 27 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 28 | 0406-297 | PLATE,HEAT-RR PNL | 1 | $16.49 | |
| 29 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 30 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 32 | 0470-404 | GROMMET,GAS VALVE KNOB | 1 | $2.95 | |
| 33 | 0423-168 | RIVET, PLASTIC,-.248X.315/.472 | 1 | $1.37 |
