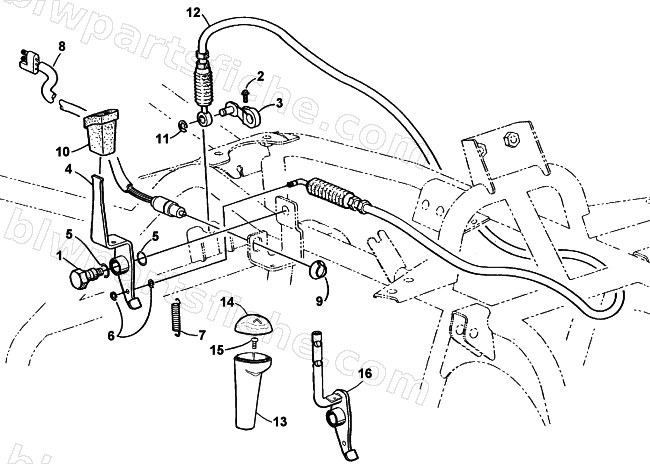

2001 Arctic Cat 400 4X4 (MANUAL TRANSMISSION) — REVERSE SHIFT LEVER ASSEMBLY
2001 400 4X4 (MANUAL TRANSMISSION)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-239 | AXLE,REVERSE SHIFTER | 1 | $30.95 | |
| 2 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 3 | 3446-055 | ARM COMP, REVERSE GEAR SHIFT | 1 | $118.95 | |
| 4 | 1502-677 | LEVER,REVERSE-WELDMENT-PTD BLK-FAB | 1 | $177.95 | |
| 5 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 6 | 0423-063 | E-RING(IRR 1000-18) | 1 | $0.68 | |
| 7 | 0402-802 | SPRING, REV LEVER | 1 | $20.63 | |
| 8 | 0409-008 | REVERSE SWITCH | 1 | $56.95 | |
| 9 | 0402-168 | RETAINER,SWITCH | 1 | $10.95 | |
| 10 | 0402-062 | KNOB,REVERSE SHIFT LVR | 1 | $12.35 | |
| 11 | 3423-860 | E RING | 1 | $3.30 | |
| 12 | 0487-003 | CABLE,SHIFT | 1 | $224.95 | |
| 13 | 0402-508 | HANDLE,SHIFT LEVER | 1 | $42.95 | |
| 14 | 0402-782 | CAP, SHIFT LEVER HANDLE (F,R) | 1 | $30.95 | |
| 15 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 16 | 0437-010 | KIT, REVERSE LEVER | 1 | $77.95 |
