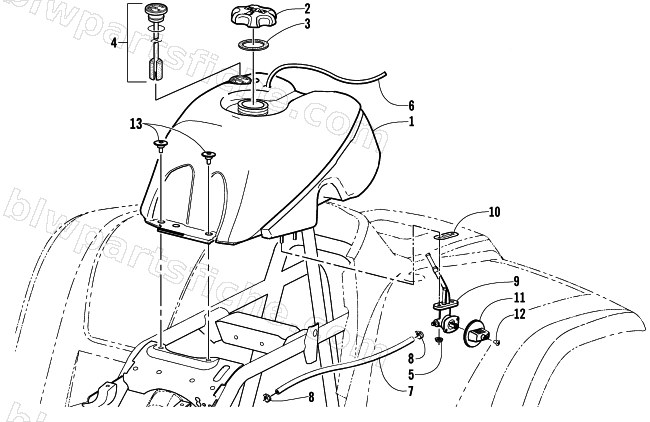

2001 Arctic Cat 500 CC (AUTOMATIC TRANSMISSION) — GAS TANK ASSEMBLY (VIN E21T325087 and Up)
2001 500 CC (AUTOMATIC TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-066 | TANK, GAS-ASSY | 1 | $393.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0570-086 | GAUGE,FUEL-W/SEAL | 1 | $79.95 | |
| 5 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 6 | 0470-416 | HOSE, VENT,-GAS TANK | 1 | $20.63 | |
| 7 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 8 | 0423-152 | CLAMP, HOSE,-SPRING (09-45334) | 1 | $0.54 | |
| 9 | 0470-445 | VALVE, FUEL | 1 | $42.95 | |
| 10 | 0470-364 | GASKET,FUEL VALVE(T G) | 1 | $16.49 | |
| 11 | 0470-408 | KNOB, GAS VALVE | 1 | $3.30 | |
| 12 | 0423-146 | SCREW,VALVE KNOB | 1 | $1.92 | |
| 13 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 |
