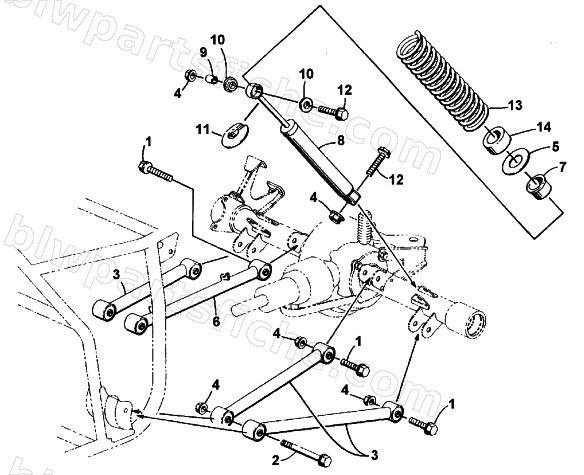

2001 Arctic Cat 500 CC (AUTOMATIC TRANSMISSION) — REAR SUSPENSION ASSEMBLY
2001 500 CC (AUTOMATIC TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 2 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 3 | 0504-001 | ARM,SWING-FAB | 1 | $90.95 | |
| 4 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 5 | 0403-013 | WASHER ,SPRING ADJUSTER | 1 | $1.95 | |
| 6 | 0504-040 | ARM, SWING,W/ BRK BRKTS-FAB | 1 | $104.95 | |
| 7 | 0403-027 | RETAINER,SPRING-LWR | 1 | $6.20 | |
| 8 | 0404-001 | SHOCK ABSORBER-REAR SUSP | 1 | $126.95 | |
| 9 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 10 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 11 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 12 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 13 | 0404-006 | SPRING,REAR-PTD BLACK | 1 | $74.95 |
