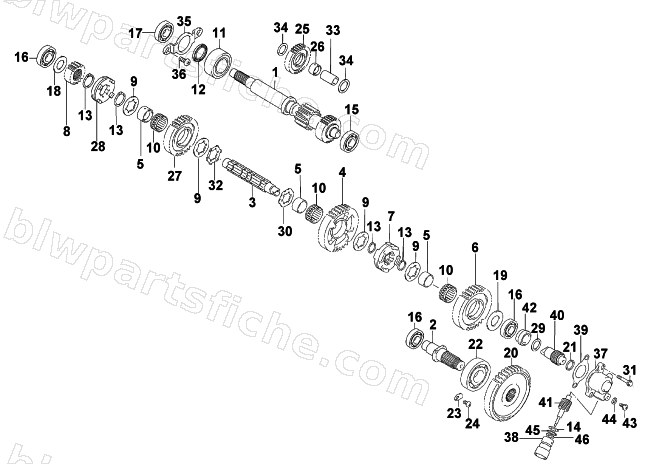

2001 Arctic Cat 500 CC (AUTOMATIC TRANSMISSION) — SECONDARY TRANSMISSION ASSEMBLY
2001 500 CC (AUTOMATIC TRANSMISSION)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-028 | SHAFT,DRIVE | 1 | $316.95 | |
| 2 | 3402-491 | SHAFT, SUB T/M OUTPUT | 1 | $158.95 | |
| 3 | 3402-492 | SHAFT, SUB T/M COUNTER | 1 | $203.95 | |
| 4 | 3402-668 | GEAR, SUB T/M DRIVEN LOW | 1 | $220.95 | |
| 5 | 3402-494 | BUSHING, SUB T/M DRIVEN | 1 | $50.95 | |
| 6 | 3402-495 | GEAR, SUB T/M DRIVEN HI (NT:33) | 1 | $205.95 | |
| 7 | 3402-496 | DOG, SLIDING | 1 | $118.95 | |
| 8 | 3402-497 | GEAR, SUB T/M DRIVE NO.2 (NT:16) | 1 | $118.95 | |
| 9 | 3423-263 | WASHER,LOCK,25MM | 1 | $4.54 | |
| 10 | 3402-498 | BEARING, SUB T/M & REV GEAR (M30X35X12) | 1 | $64.95 | |
| 11 | 3402-499 | BEARING, DRIVE SHAFT RH (M30X62X23.8) | 1 | $174.95 | |
| 12 | 3402-537 | SEAL, DRIVE SHAFT (M30X44X7) | 1 | $33.95 | |
| 13 | 3423-066 | CIRCLIP,M25 | 1 | $6.47 | |
| 14 | 3423-144 | WASHER, ODOMETER DRIVEN GEAR-M8X15 | 1 | $2.95 | |
| 15 | 3003-261 | BEARING, CRANKSHAFT LH,M20X47X14 | 1 | $34.95 | |
| 16 | 3402-045 | BALL BEARING,M20X52X15 | 1 | $66.95 | |
| 17 | 3402-490 | BEARING, BALL | 1 | $74.95 | |
| 18 | 3423-411 | WASHER, DRIVE GEAR RH | 1 | $3.30 | |
| 19 | 3423-412 | WASHER, DRIVE GEAR | 1 | $3.57 | |
| 20 | 3402-534 | GEAR, SUB T/M DRIVEN NO. 2 | 1 | $227.95 | |
| 21 | 3423-145 | WASHER, ODOMETER DRIVE GEAR-M15X20 | 1 | $2.61 | |
| 22 | 3402-502 | BEARING, OUTPUT SHAFT | 1 | $169.95 | |
| 23 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 24 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 25 | 3402-503 | GEAR,REVERSE IDLE | 1 | $135.95 | |
| 26 | 3402-504 | BUSHING, REVERSE IDLE GEAR | 1 | $37.95 | |
| 27 | 3402-505 | GEAR, REVERSE DRIVEN (NT:32) | 1 | $196.95 | |
| 28 | 3402-506 | DOG, REVERSE GEAR | 1 | $133.95 | |
| 29 | 3423-146 | WASHER, ODOMETER DRIVE GEAR, R-M17X24 | 1 | $2.61 | |
| 30 | 3423-262 | WASHER,LOCK,25MM | 1 | $4.54 | |
| 31 | 3006-529 | BOLT,6 X 20 | 1 | $3.44 | |
| 32 | 3423-266 | WASHER,LOCK,25MM | 1 | $2.61 | |
| 33 | 3402-507 | SHAFT, REVERSE IDLE | 1 | $37.95 | |
| 34 | 3402-195 | SHIM,20MM | 1 | $4.95 | |
| 35 | 3423-410 | RETAINER, BEARING | 1 | $20.63 | |
| 36 | 3423-018 | SCREW, 6X12 | 1 | $2.61 | |
| 37 | 3446-057 | HOUSING, ODOMETER GEAR | 1 | $91.95 | |
| 38 | 3446-058 | SLEEVE, ODOMETER DRIVEN GEAR | 1 | $66.95 | |
| 39 | 3446-244 | GASKET,ODOMETER GEAR SLV | 1 | $13.73 | |
| 40 | 3402-508 | GEAR, DRIVE | 1 | $112.95 | |
| 41 | 3402-509 | GEAR, DRIVEN (NT:15) | 1 | $66.95 | |
| 42 | 3446-114 | SPACER, DRIVEN GEAR | 1 | $47.95 | |
| 43 | 3423-792 | BOLT,6X10 | 1 | $3.16 | |
