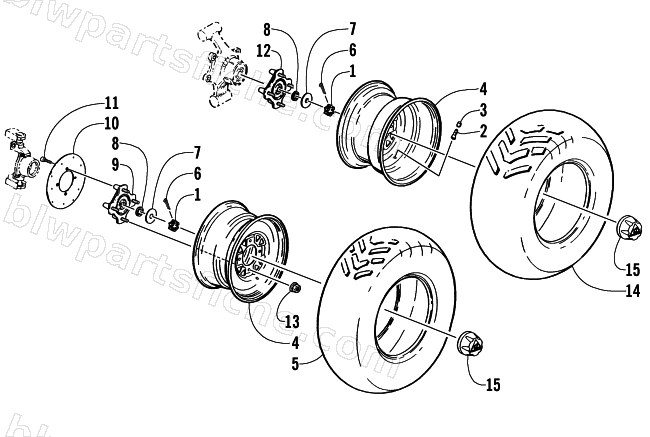

2002 Arctic Cat 300 4x4 () — WHEEL AND TIRE ASSEMBLY
2002 300 4x4 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-346 | NUT, HEX-CASTLE-M18 X 1.5 | 1 | $26.95 | |
| 2 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 4 | 0402-891 | WHEEL, ASSY-GRAY | 1 | $119.95 | |
| 5 | 0402-316 | TIRE,23 X 8-12 - TITAN AT489A | 1 | $130.95 | |
| 5 | 0402-317 | TIRE,24X9-12- AT489A | 1 | $142.95 | |
| 6 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 7 | 0423-080 | WASHER,WHEEL 18MM | 1 | $3.85 | |
| 8 | 0402-181 | SEAL,HUB | 1 | $1.64 | |
| 9 | 0502-258 | HUB,SPLINED-ASSY (W/DISK MT) | 1 | $180.95 | |
| 10 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 11 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 13 | 0423-322 | NUT, WHEEL MOUNTING-Z&C | 1 | $2.95 | |
| 14 | 0402-319 | TIRE,25X10-12 - TITAN AT489A | 1 | $159.95 | |
| 15 | 0403-035 | CAP,WHEEL-CTR | 1 | $12.35 |
