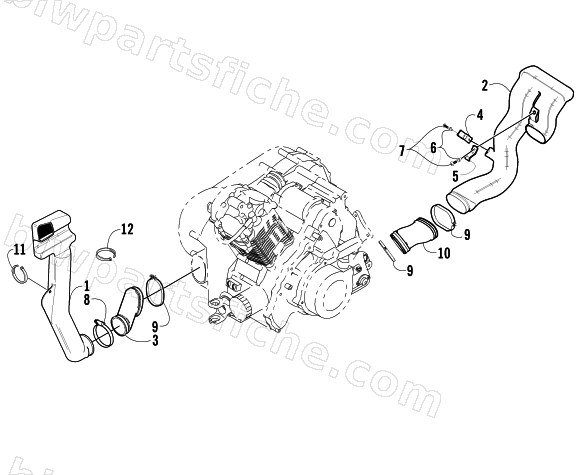

CASE/BELT COOLING ASSEMBLY
2002 375 AUTOMATIC TRANSMISSION (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-042 | DUCT, COOLING-BELT (FWD) | 1 | $62.95 | |
| 2 | 0413-051 | DUCT, COOLING-BELT (REAR) | 1 | $56.95 | |
| 3 | 0413-048 | BOOT, COOLING-BELT (FWD) | 1 | $32.95 | |
| 4 | 0423-365 | CLIP, MOUNTING | 1 | $17.87 | |
| 5 | 0423-364 | CLIP, MOUNTING | 1 | $16.49 | |
| 6 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 7 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 8 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 9 | 3402-449 | CLAMP, DUCT FRONT | 1 | $20.63 | |
| 10 | 0413-050 | BOOT, BELT COOLING (REAR) | 1 | $54.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
