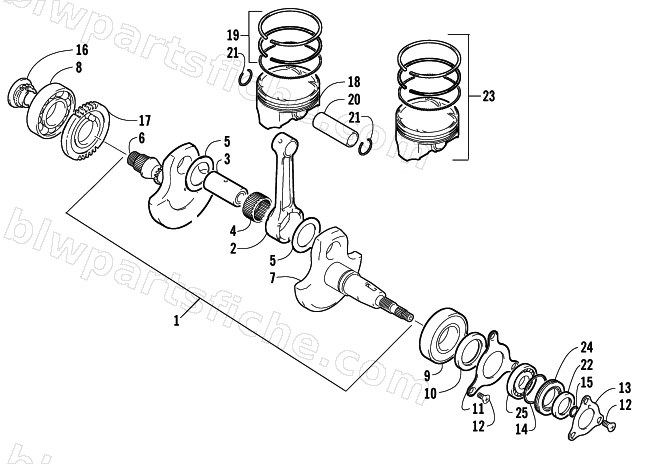

CRANKSHAFT ASSEMBLY
2002 375 AUTOMATIC TRANSMISSION (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-009 | CRANKSHAFT ASSY | 1 | $1,378.95 | |
| 2 | 3402-597 | ROD, CONNECTING | 1 | $197.95 | |
| 3 | 3402-599 | PIN, CRANK | 1 | $91.95 | |
| 4 | 3402-571 | BEARING, 34 X 43 X 22 | 1 | $122.95 | |
| 5 | 3423-440 | WASHER, 34 X 52 X 1 | 1 | $10.97 | |
| 6 | 3403-014 | CRANKSHAFT,RH | 1 | $743.95 | |
| 7 | 3402-601 | CRANKSHAFT, LEFT | 1 | $468.95 | |
| 8 | 3402-055 | BALL BEARING ,M35X72X17 | 1 | $112.95 | |
| 9 | 3402-566 | BEARING, CRANKSHAFT-M | 1 | $151.95 | |
| 10 | 3402-573 | SEAL | 1 | $58.95 | |
| 11 | 3402-602 | RETAINER, CRANKSHAFT OIL SEAL, M | 1 | $23.39 | |
| 12 | 3423-018 | SCREW, 6X12 | 1 | $2.61 | |
| 13 | 3402-188 | RETAINER, OIL SEAL | 1 | $17.87 | |
| 14 | 3423-063 | O RING, ID:44, OD:2.4 | 1 | $20.63 | |
| 15 | 3423-053 | O RING | 1 | $6.47 | |
| 16 | 3402-610 | SPROCKET, CAM CHAIN DRIVE | 1 | $112.95 | |
| 17 | 3402-698 | GEAR,CRANK BALANCER DRIVE | 1 | $196.95 | |
| 18 | 3402-594 | PISTON (375 AUTO) | 1 | $196.95 | |
| 19 | 3402-595 | RING SET, PISTON | 1 | $94.95 | |
| 20 | 3402-596 | PIN, PISTON | 1 | $58.95 | |
| 21 | 3003-439 | CIRCLIP,PISTON PIN,M20 | 1 | $3.16 | |
| 22 | 3402-070 | OIL SEAL,M25X36X6 | 1 | $45.95 | |
| 23 | 3436-015 | PISTON SET, OSO.50MM (375 AUTO) | 1 | $244.95 | |
| 24 | 3423-542 | SPACER | 1 | $52.95 | |
| 25 | 3402-051 | BEARING,M25 | 1 | $62.95 |
