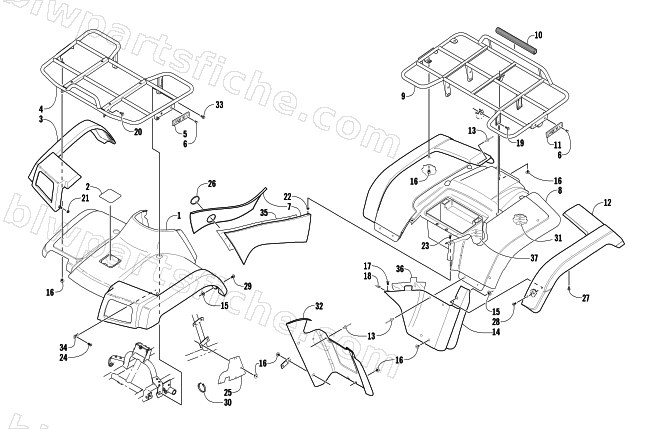

2002 Arctic Cat 400 2x4 MANUAL TRANSMISSION FIS () — BODY PANEL ASSEMBLY
2002 400 2x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-605 | PANEL,FENDER,FR-ROUTED (RD) | 1 | $647.95 | |
| 1 | 0506-604 | PANEL,FENDER,FR-ROUTED (GRN) | 1 | $742.95 | |
| 1 | 0506-616 | PANEL,FENDER,FR-ROUTED (RD) | 1 | $405.95 | |
| 1 | 0506-584 | PANEL,FENDER FR-ROUTED (GRN) | 1 | $628.95 | |
| 2 | 1406-142 | COVER,ACCESS-RED (W/LOGO) | 1 | $20.95 | |
| 2 | 1406-141 | COVER,ACCESS-MARSH GREEN (W/LOGO) | 1 | $21.95 | |
| 3 | 0506-550 | FLARE, FRONT RH | 1 | $79.95 | |
| 3 | 0506-551 | FLARE, FRONT LH | 1 | $79.95 | |
| 4 | 0506-718 | RACK-FR-BLACK | 1 | $293.95 | |
| 4 | 0506-547 | RACK, FR-BLACK | 1 | $679.95 | |
| 5 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0506-243 | PANEL,SIDE-LH ROUTED - RED | 1 | $36.95 | |
| 7 | 0506-549 | PANEL, SIDE RH-ROUTED (GRN) | 1 | $317.95 | |
| 7 | 0506-673 | PANEL, SIDE-LH-ROUTED GRN | 1 | $126.95 | |
| 8 | 0506-618 | RR FENDER-RED-ROUTED | 1 | $427.95 | |
| 8 | 0506-634 | PANEL, FENDER-RR-ROUTED-GRN | 1 | $474.95 | |
| 8 | 1506-520 | PANEL,RR FENDER-RED-ROUTED | 1 | $474.95 | |
| 8 | 1506-519 | PANEL,RR FENDER-GREEN-ROUTED | 1 | $474.95 | |
| 9 | 0506-821 | RACK,REAR-W/FENCE-BLACK | 1 | $1,130.95 | |
| 10 | 0406-293 | WRAP,TUBE-RR RACK | 1 | $41.95 | |
| 11 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 12 | 0506-552 | FLARE, REAR RH | 1 | $79.95 | |
| 12 | 0506-553 | FLARE, REAR LH | 1 | $79.95 | |
| 13 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 14 | 0406-084 | FENDER EXTENSION-RH-MOLDED-BLACK | 1 | $158.95 | |
| 14 | 0406-085 | FENDER EXTENSION-LH-MOLDED-BLACK | 1 | $90.95 | |
| 15 | 0423-077 | NUT,T-W/TEETH (6MM) | 1 | $3.44 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 17 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 18 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 19 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 20 | 0423-360 | SCREW, CAP HFH M8-1.25 X 12 EM- BLK | 1 | $10.95 | |
| 21 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | 1 | $0.35 | |
| 24 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 25 | 1406-006 | PANEL, FENDER- INNER | 1 | $13.95 | |
| 26 | 0470-404 | GROMMET,GAS VALVE KNOB | 1 | $2.95 | |
| 27 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 28 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 29 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 0412-124 | SHIELD, HEAT(PSA) | 1 | $33.95 | |
| 32 | 0406-140 | FLARE,FR RH MOLDED-ECONO-BLACK | 1 | $74.95 | |
| 32 | 0506-628 | PANEL, KICK-FR-LH-ROUTED | 1 | $64.95 | |
| 32 | 0406-941 | PANEL, KICK-FR-RH-BLACK | 1 | $79.95 | |
| 32 | 0506-626 | PANEL, KICK-FR-LH-ROUTED | 1 | $64.95 | |
| 33 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 34 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 35 | 0412-142 | SHIELD,HEAT (PSA) | 1 | $32.95 | |
| 36 | 0412-140 | SHIELD,HEAT (PSA) | 1 | $26.95 | |
| 37 | 0412-147 | SHIELD,HEAT (PSA) | 1 | $33.95 |
