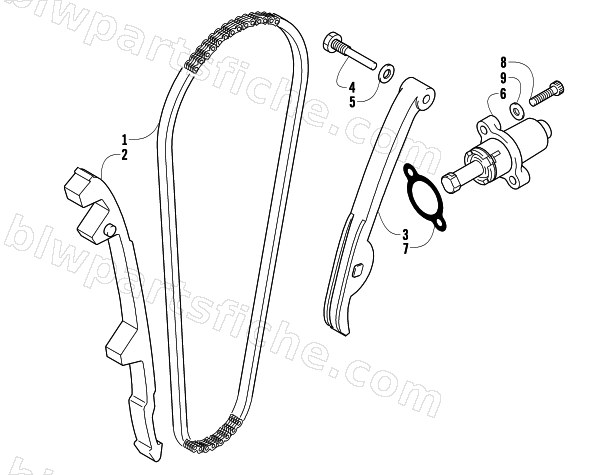

CAM CHAIN ASSEMBLY
2002 400 4x4 MANUAL TRANSMISSION FIS ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-133 | CHAIN COMP, CAMSHAFT DRIVE | 1 | $227.95 | |
| 1 | 3402-353 | CHAIN COMP,CAMSHAFT DRIVE | 1 | $235.95 | |
| 2 | 3402-134 | GUIDE, CAMSHAFT CHAIN | 1 | $108.95 | |
| 2 | 3402-355 | GUIDE,CAMSHAFT CHAIN | 1 | $122.95 | |
| 3 | 3402-135 | TENSIONER, CAMSHAFT CHAIN | 1 | $104.95 | |
| 3 | 3402-356 | TENSIONER,CAMSHAFT CHAIN | 1 | $104.95 | |
| 4 | 3423-074 | BOLT, CAMSHAFT CHAIN TENSIONER | 1 | $6.34 | |
| 5 | 3402-436 | WASHER | 1 | $1.92 | |
| 6 | 3402-136 | ADJUSTER ASSY, TENSIONER | 1 | $203.95 | |
| 7 | 3402-137 | GASKET, TENSIONER ADJUSTER (NA) | 1 | $6.34 | |
| 8 | 3004-475 | BOLT,6X25 (R/B 3007-509) | 1 | $2.95 | |
| 9 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 |
