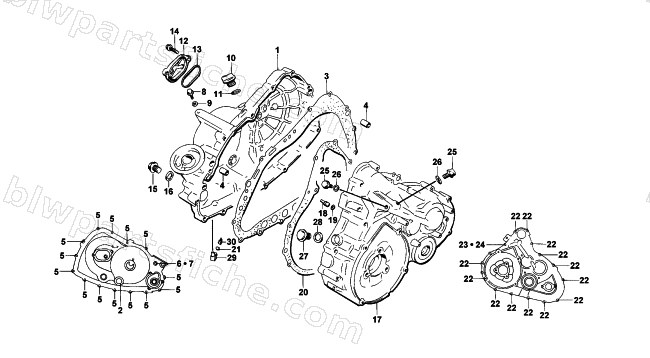

2002 Arctic Cat 400 4x4 MANUAL TRANSMISSION FIS () — CRANKCASE COVER ASSEMBLY
2002 400 4x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-199 | COVER, CLUTCH | 1 | $682.95 | |
| 1 | 3402-367 | COVER, COMP - CLUTCH | 1 | $650.95 | |
| 2 | 3402-112 | LENS, OIL INSPECTION | 1 | $47.95 | |
| 3 | 3402-108 | GASKET, SUB TRANS | 1 | $56.95 | |
| 4 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 5 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 6 | 3423-097 | BOLT, CLUTCH COVER-M6X70 | 1 | $4.54 | |
| 7 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 8 | 3007-457 | BOLT | 1 | $3.16 | |
| 10 | 3402-042 | PLUG,20MM | 1 | $20.63 | |
| 11 | 3423-055 | O RING D:3.1 ID:16.8 | 1 | $2.75 | |
| 12 | 3402-100 | CAP, INSPECTION | 1 | $48.95 | |
| 12 | 3402-363 | CAP,INSPECTION | 1 | $37.95 | |
| 13 | 3402-101 | O RING, INSPECTION CAP | 1 | $12.35 | |
| 14 | 3423-859 | SCREW | 1 | $2.06 | |
| 15 | 3402-037 | PLUG,14MM | 1 | $10.97 | |
| 15 | 3402-214 | PLUG,14MM | 1 | $9.59 | |
| 16 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 17 | 3402-106 | COVER SET, TRANSFER | 1 | $486.95 | |
| 17 | 3402-368 | COVER,TRANSFER | 1 | $502.95 | |
| 18 | 3402-097 | JET, AIR | 1 | $29.95 | |
| 19 | 3423-051 | O RING | 1 | $2.75 | |
| 20 | 3402-538 | GASKET, TRANSFER COVER | 1 | $54.95 | |
| 21 | 3423-120 | CLIP, WATER DRAIN TUBE HOSE,M8 | 1 | $2.06 | |
| 22 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 23 | 3423-909 | BOLT,CRANK M6X70 | 1 | $4.13 | |
| 25 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 25 | 3423-348 | PLUG, OIL GALLERY(BOLT),8MM | 1 | $3.30 | |
| 26 | 3005-242 | GASKET,M8.2X14X1.6 | 1 | $5.37 | |
| 27 | 3403-236 | PLUG 16MM | 1 | $15.11 | |
| 28 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 29 | 3413-009 | UNION, WATER DRAIN | 1 | $29.95 | |
| 30 | 3413-008 | TUBE, WATER DRAIN | 1 | $13.73 |
