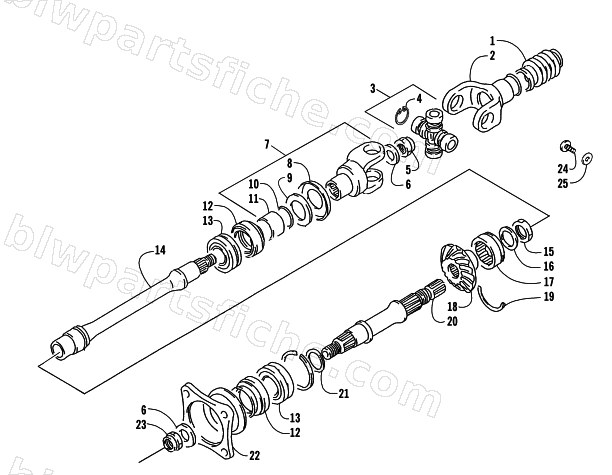

2002 Arctic Cat 400 4x4 MANUAL TRANSMISSION FIS () — SECONDARY DRIVE ASSEMBLY (4x4)
2002 400 4x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-967 | BOOT,PROP SHAFT (SHORT) | 1 | $13.95 | |
| 2 | 3435-002 | YOKE COMP, PROP SFT JOINT | 1 | $196.95 | |
| 3 | 3435-011 | JOINT SET, UNIVERSAL | 1 | $38.95 | |
| 4 | 3423-067 | CIRCLIP,M25 | 1 | $3.95 | |
| 5 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 6 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 7 | 3435-090 | YOKE, FR DRIVE OUTPUT & FR BEVEL GEAR | 1 | $213.95 | |
| 8 | 3423-035 | WASHER,30MM | 1 | $5.51 | |
| 9 | 3435-030 | PLATE, OUTPUT YOKE OIL SEAL | 1 | $20.63 | |
| 10 | 3423-060 | O RING D:1 ID:28 | 1 | $4.40 | |
| 11 | 3435-029 | COLLAR, OUTPUT OIL SEAL | 1 | $45.95 | |
| 12 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 13 | 3403-210 | BEARING,REAR OUTPUT SHAFT RR | 1 | $106.95 | |
| 14 | 3446-239 | SHAFT,SEC.DRIVEN,FRONT | 1 | $331.95 | |
| 15 | 3423-136 | NUT, SEC DRIVEN GEAR,22MM | 1 | $19.25 | |
| 16 | 3423-137 | WASHER, SEC DRIVEN GEAR-M22X36 | 1 | $6.34 | |
| 17 | 3402-515 | BEARING, SEC DRIVEN GEAR,M (30X50X17) | 1 | $79.95 | |
| 18 | 3446-222 | GEAR,SEC DRIVEN BEVEL | 1 | $292.95 | |
| 19 | 3423-072 | C RING,M50 | 1 | $5.78 | |
| 20 | 3446-426 | SHAFT,SEC DRIVEN OUTPUT,RR | 1 | $252.95 | |
| 21 | 3402-017 | SHIM,25MM | 1 | $5.92 | |
| 21 | 3402-018 | SHIM,25MM | 1 | $5.92 | |
| 21 | 3402-019 | SHIM,25MM | 1 | $5.92 | |
| 21 | 3402-020 | SHIM,25MM | 1 | $5.92 | |
| 21 | 3403-217 | SHIM,25X34X0.8 | 1 | $5.92 | |
| 21 | 3402-022 | SHIM,25MM | 1 | $5.95 | |
| 21 | 3402-023 | SHIM,25MM | 1 | $5.92 | |
| 21 | 3402-024 | SHIM,25MM | 1 | $5.92 | |
| 21 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 21 | 3402-028 | SHIM,25MM | 1 | $6.20 | |
| 21 | 3402-029 | SHIM,25MM | 1 | $6.47 | |
| 21 | 3402-030 | SHIM,25MM | 1 | $6.47 | |
| 21 | 3402-031 | SHIM,25MM | 1 | $6.47 | |
| 22 | 3402-514 | FLANGE, RR OUTPUT JOINT | 1 | $212.95 | |
| 24 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 25 | 3423-135 | RETAINER, CNTR SHAFT BRG-M6X16 | 1 | $5.92 |
