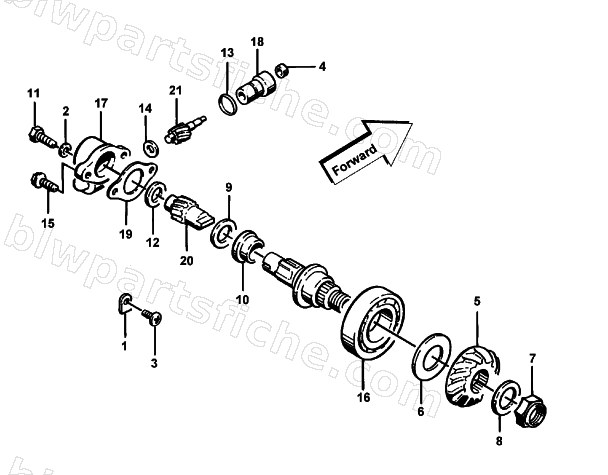

2002 Arctic Cat 400 4x4 MANUAL TRANSMISSION FIS () — SPEEDOMETER DRIVE ASSEMBLY
2002 400 4x4 MANUAL TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 2 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 3 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 4 | 3402-077 | OIL SEAL,M5 | 1 | $20.95 | |
| 5 | 3446-274 | GEAR, SEC DRIVE BEVEL | 1 | $292.95 | |
| 6 | 3423-549 | SHIM SET, SEC DRIVE BEVEL | 1 | $163.95 | |
| 7 | 3423-023 | NUT 20MM | 1 | $4.54 | |
| 8 | 3423-032 | WASHER,20MM | 1 | $4.13 | |
| 9 | 3423-146 | WASHER, ODOMETER DRIVE GEAR, R-M17X24 | 1 | $2.61 | |
| 10 | 3446-114 | SPACER, DRIVEN GEAR | 1 | $47.95 | |
| 11 | 3423-792 | BOLT,6X10 | 1 | $3.16 | |
| 12 | 3423-145 | WASHER, ODOMETER DRIVE GEAR-M15X20 | 1 | $2.61 | |
| 13 | 3423-056 | O RING D:1.9 ID:16.6 | 1 | $4.82 | |
| 14 | 3423-144 | WASHER, ODOMETER DRIVEN GEAR-M8X15 | 1 | $2.95 | |
| 15 | 3006-529 | BOLT,6 X 20 | 1 | $3.44 | |
| 16 | 3402-055 | BALL BEARING ,M35X72X17 | 1 | $112.95 | |
