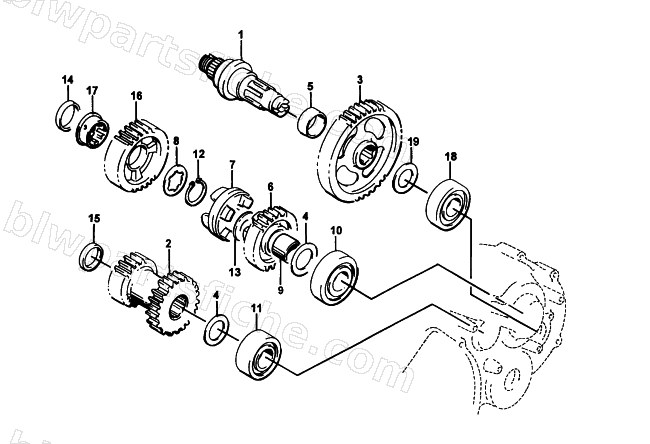

SECONDARY TRANSMISSION ASSEMBLY
2002 400 4X4/500 MANUAL TRANSMISSION (500 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-262 | SHAFT,SUB T/M OUTPUT | 1 | $299.95 | |
| 2 | 3446-066 | GEAR, SUB T/M IDLE | 1 | $244.95 | |
| 3 | 3446-072 | GEAR, SUB T/M DRIVEN 42T | 1 | $212.95 | |
| 4 | 3423-150 | WASHER, SUB T/M DRIVE NO. 2 GR, L-M20X34 | 1 | $2.61 | |
| 4 | 3402-381 | WASHER,M20X34X1 | 1 | $3.57 | |
| 5 | 3402-015 | SPACER, M25X30X12.4 | 1 | $23.39 | |
| 6 | 3446-070 | GEAR, SUB T/M DRIVE, NO. 2 | 1 | $187.95 | |
| 6 | 3446-248 | GEAR,SUB T/M DRIVE NO.2 | 1 | $151.95 | |
| 7 | 3446-108 | DOG, SELECT SLIDING | 1 | $163.95 | |
| 7 | 3446-249 | DOG,SUB T/M SELECT SLIDING | 1 | $158.95 | |
| 8 | 3423-036 | WASHER,25MM | 1 | $4.54 | |
| 9 | 3446-103 | BUSH, SUB T/M DRIVE, NO, 2 | 1 | $48.95 | |
| 10 | 3402-046 | BEARING, M20X52X15 | 1 | $74.95 | |
| 11 | 3402-979 | BEARING,CENTER SHAFT LH | 1 | $87.95 | |
| 12 | 3423-066 | CIRCLIP,M25 | 1 | $6.47 | |
| 13 | 3423-126 | WASHER, 2ND DRIVE GR-M20X30 | 1 | $2.95 | |
| 13 | 3402-195 | SHIM,20MM | 1 | $4.95 | |
| 14 | 3446-068 | SPACER, SUB T/M DRIVE NO. 1 GR | 1 | $32.95 | |
| 14 | 3446-246 | SPACER,SUB T/M DRIVE NO.1 GR | 1 | $30.95 | |
| 15 | 3423-148 | SPACER, SUB T/M IDLE GEAR,20MM | 1 | $23.39 | |
| 16 | 3446-067 | GEAR, SUB T/M DRIVE, NO.1 28T | 1 | $220.95 | |
| 16 | 3446-245 | GEAR,SUB T/M DRIVE,NO.1 | 1 | $190.95 | |
| 17 | 3446-259 | BUSH, SUB T/M DRIVE NO.1 GEAR | 1 | $64.95 | |
| 17 | 3446-247 | BUSHING,SUB T/M DRIVE NO.1 GR | 1 | $48.95 | |
| 18 | 3402-045 | BALL BEARING,M20X52X15 | 1 | $66.95 |
