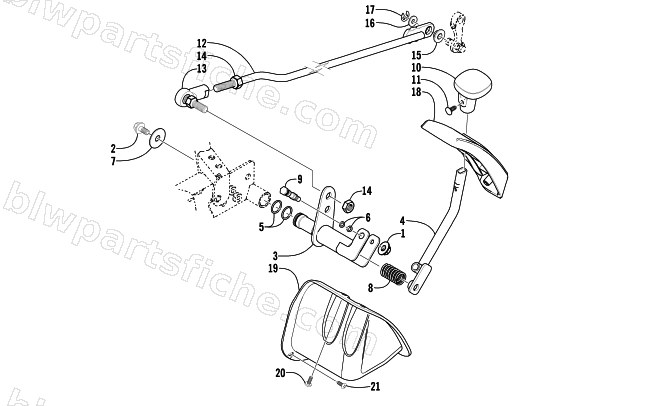

2002 Arctic Cat 500 AUTOMATIC TRANSMISSION FIS () — REVERSE SHIFT LEVER ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 2 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 3 | 0502-187 | AXLE, SHIFT LEVER-MOUNT-BLACK | 1 | $42.95 | |
| 4 | 0502-185 | LEVER,SHIFT-BLACK | 1 | $41.95 | |
| 5 | 0423-299 | O-RING,-016 (5/8X3/4X1/16) | 1 | $1.23 | |
| 6 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 7 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 8 | 0402-678 | SPRING,SHIFT,LEVER | 1 | $10.97 | |
| 9 | 0402-675 | AXLE,PIVOT,SHAFT | 1 | $20.63 | |
| 10 | 0402-843 | KNOB,SHIFT | 1 | $16.49 | |
| 11 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 12 | 0502-188 | LINKAGE, SHIFT-WELD'T | 1 | $23.95 | |
| 13 | 0402-844 | ROD END-3/8" | 1 | $32.95 | |
| 14 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 15 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 16 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 17 | 0423-063 | E-RING(IRR 1000-18) | 1 | $0.68 | |
| 18 | 0402-685 | PLATE,SHIFT-AUTO | 1 | $32.95 | |
| 19 | 0406-943 | SHIELD, LINKAGE | 1 | $87.95 | |
| 20 | 0423-371 | SCREW,MACH-TXSPH-M5X12 SEMS | 1 | $1.37 | |
| 21 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 |
