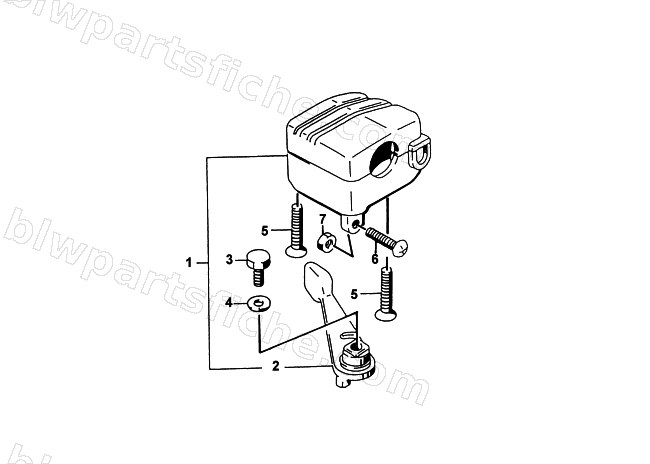

2002 Arctic Cat 500 AUTOMATIC TRANSMISSION FIS () — THROTTLE CONTROL ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION FIS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3509-003 | CASE ASSY,THROTTLE | 1 | $196.95 | |
| 2 | 3409-001 | LEVER,THROTTLE | 1 | $26.95 | |
| 3 | 3423-420 | BOLT | 1 | $2.33 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 6 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 7 | 3423-327 | NUT,5MM | 1 | $2.33 |
