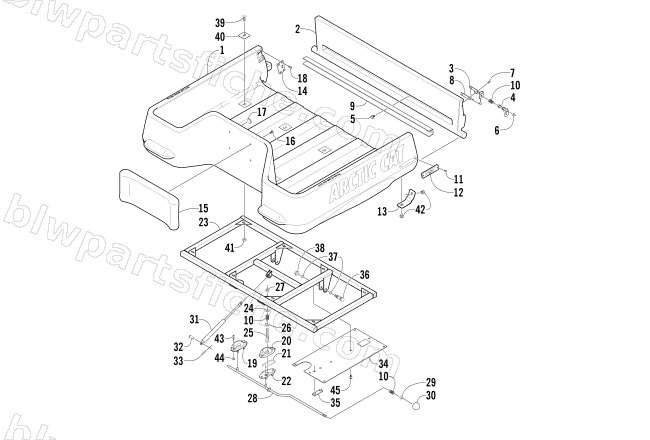

2002 Arctic Cat 500 AUTOMATIC TRANSMISSION TBX — CARGO BOX AND TILT FRAME ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-509 | BOX,CARGO | 1 | $1,098.95 | |
| 2 | 0506-622 | TAILGATE-ASSY | 1 | $359.95 | |
| 3 | 0506-504 | BODY,LATCH-RH-BLACK | 1 | $62.95 | |
| 3 | 0506-505 | BODY,LATCH-LH-BLACK | 1 | $64.95 | |
| 4 | 0506-502 | PIN,LATCH-RH-WELDMENT | 1 | $21.95 | |
| 4 | 0506-503 | PIN,LATCH-LH-WELDMENT | 1 | $21.95 | |
| 5 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 6 | 0406-933 | GUIDE, PIN, LATCH | 1 | $2.95 | |
| 7 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 8 | 1406-088 | SHIM,LATCH | 1 | $8.21 | |
| 9 | 0406-807 | CHANNEL, REINFORCEMENT-TAILGATE | 1 | $169.95 | |
| 10 | 0406-934 | SPRING, LATCH-TAILGATE | 1 | $8.21 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 13 | 0506-986 | BRACKET, HINGE - BLACK | 1 | $13.73 | |
| 14 | 2406-114 | STRIKE,LATCH-TAILGATE-BLACK | 1 | $20.63 | |
| 15 | 0506-686 | PAD, BACK REST | 1 | $156.95 | |
| 16 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 17 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 18 | 8474-616 | SCREW,MACH-TSFH M6X1.0X16 CL8.8 BLK | 1 | $12.35 | |
| 20 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 21 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 22 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 23 | 0506-501 | FRAME,TILT-WELDMENT | 1 | $185.95 | |
| 24 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 25 | 0423-354 | STUD, LATCH CARGO BOX | 1 | $20.95 | |
| 26 | 0423-322 | NUT, WHEEL MOUNTING-Z&C | 1 | $2.95 | |
| 27 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 28 | 0506-687 | SHAFT, RELEASE-BLACK | 1 | $49.95 | |
| 29 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 30 | 1406-022 | KNOB, RELEASE | 1 | $26.95 | |
| 31 | 0506-719 | SUPPORT,LIFT-CARGO BOX | 1 | $90.95 | |
| 32 | 0423-374 | PIN,CLEVIS-3/8X1.0 | 1 | $3.95 | |
| 33 | 0623-846 | PIN, COTTER,1.18X.07 WIRE | 1 | $1.09 | |
| 34 | 0412-153 | SHIELD,HEAT-CARGO BOX | 1 | $57.95 | |
| 35 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 36 | 0423-353 | PIN, PIVOT-CARGO BOX | 1 | $21.95 | |
| 37 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 38 | 0423-388 | NUT,HEX FL M12-1.75 | 1 | $0.95 | |
| 39 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 40 | 1506-166 | PLATE,RETAINER-BLACK | 1 | $10.97 | |
| 41 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 42 | 0423-360 | SCREW, CAP HFH M8-1.25 X 12 EM- BLK | 1 | $10.95 | |
| 44 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 45 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 |
