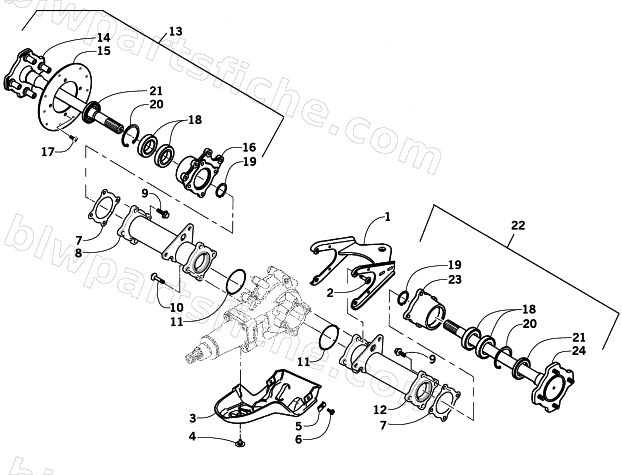

REAR AXLE ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-300 | TRAILER HITCH-BLACK | 1 | $130.95 | |
| 2 | 0423-116 | SCREW,SELF TAP-TSPNH M10X1.5X37 | 1 | $30.95 | |
| 3 | 0406-415 | PANEL,GEARCASE RR | 1 | $24.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 6 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 7 | 0402-374 | GASKET,AXLE-RR | 1 | $20.63 | |
| 8 | 0502-227 | HOUSING, AXLE RH-WELDMENT-PTD | 1 | $375.95 | |
| 9 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 10 | 0423-117 | SCREW,SELFTAP-TSPNH M10X1.5X33 | 1 | $1.78 | |
| 11 | 0423-119 | O-RING,79.5 X2MM | 1 | $3.57 | |
| 12 | 0502-228 | HOUSING, AXLE LH-WELDMENT-PTD | 1 | $375.95 | |
| 13 | 0502-267 | RETAINER, AXLE-RR RH ASSY | 1 | $428.95 | |
| 14 | 0502-272 | AXLE, ASSY-RR-RH | 1 | $267.95 | |
| 15 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 16 | 0502-682 | HOUSING,BEARING-RH-MACH | 1 | $183.95 | |
| 17 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 18 | 0402-339 | BEARING,BALL (6007 2RS C3) | 1 | $23.39 | |
| 19 | 0402-351 | RING,RETAINING-EXT 35MM | 1 | $2.95 | |
| 20 | 0402-347 | RING,RETAINING-INT 62 | 1 | $4.95 | |
| 21 | 0402-348 | SEAL, 40 X 62 X 8 | 1 | $47.95 | |
| 22 | 0502-107 | RETAINER, AXLE - RR LH ASSY | 1 | $430.95 | |
| 24 | 0502-273 | AXLE,REAR-LH-ASSY | 1 | $441.95 |
