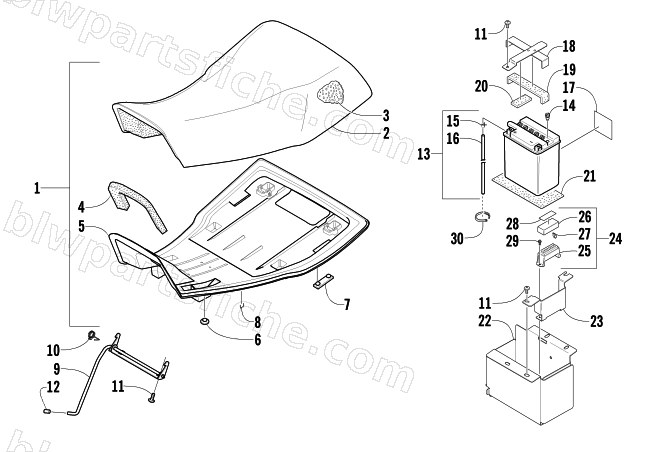

2002 Arctic Cat 500 AUTOMATIC TRANSMISSION TBX — SEAT AND BATTERY ASSEMBLIES
2002 500 AUTOMATIC TRANSMISSION TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-613 | SEAT, TBOX-ASSY | 1 | $781.95 | |
| 2 | 0506-556 | COVER, SEAT | 1 | $129.95 | |
| 3 | 0506-555 | FOAM,SEAT (68-72ILD).48@3.3 | 1 | $100.95 | |
| 4 | 1406-060 | FOAM,SOUND-SEAT | 1 | $11.95 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 8 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 9 | 0406-967 | LATCH, SEAT | 1 | $55.95 | |
| 10 | 0406-235 | SPRING,SEAT LATCH | 1 | $5.95 | |
| 11 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 14 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 15 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 16 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 17 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 18 | 0506-716 | STRAP, HOLDDOWN-BTRY | 1 | $37.95 | |
| 19 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 20 | 0406-548 | PAD, BATTERY-TOP FR | 1 | $61.95 | |
| 21 | 0406-556 | PAD,BATTERY | 1 | $13.95 | |
| 22 | 0406-982 | BOX, BATTERY | 1 | $99.95 | |
| 23 | 0406-964 | BRKT, FUSEHOLDER | 1 | $29.95 | |
| 24 | 0530-001 | FUSE BOX-ASSY | 1 | $33.95 | |
| 27 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 27 | 0630-058 | FUSE,15 AMP ATO | 1 | $8.21 | |
| 28 | 0411-271 | DECAL,FUSE BLOCK | 1 | $3.95 | |
| 29 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 | |
| 30 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
