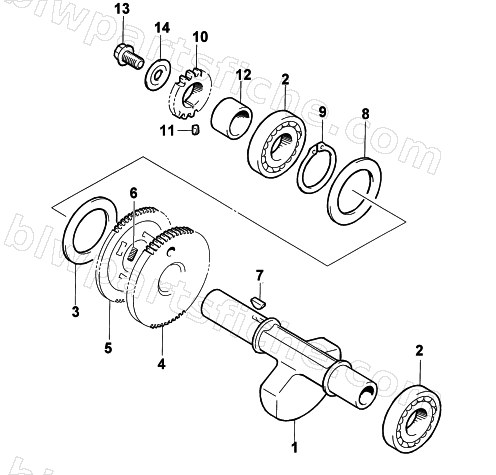

CRANK BALANCER ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-458 | BALANCER, CRANK | 1 | $205.95 | |
| 2 | 3402-050 | BEARING, M22X56X16 | 1 | $139.95 | |
| 3 | 3423-398 | WASHER | 1 | $5.95 | |
| 4 | 3402-459 | GEAR, DRIVEN NO.1 | 1 | $244.95 | |
| 5 | 3402-460 | GEAR, DRIVEN NO.2 | 1 | $113.95 | |
| 6 | 3423-399 | SPRING, DRIVEN GEAR | 1 | $3.95 | |
| 7 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 8 | 3423-107 | WASHER, CRK BAL DRIVEN GEAR-M38X58 | 1 | $7.95 | |
| 9 | 3423-200 | CIRCLIP,FASTENER | 1 | $5.95 | |
| 10 | 3402-390 | GEAR,OIL PUMP DRIVE | 1 | $79.95 | |
| 11 | 3423-110 | PIN, DECOMP HOLDER | 1 | $3.57 | |
| 12 | 3402-461 | SPACER-DRIVE GEAR | 1 | $26.95 | |
| 13 | 3423-400 | BOLT, DRIVE GEAR | 1 | $4.13 | |
| 14 | 3423-401 | WASHER, DRIVE GEAR | 1 | $4.95 |
