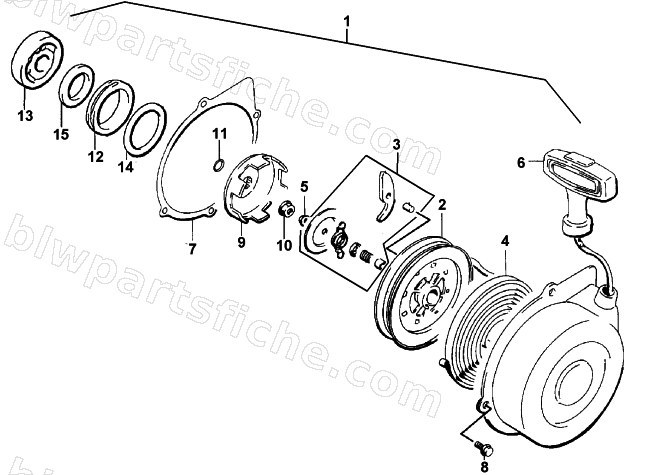

RECOIL STARTER ASSEMBLY
2002 500 AUTOMATIC TRANSMISSION ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-003 | STARTER ASSY, RECOIL | 1 | $316.95 | |
| 2 | 3445-004 | REEL, STARTER | 1 | $87.95 | |
| 3 | 3445-016 | RATCHET SET | 1 | $29.95 | |
| 4 | 3445-007 | SPRING, RECOIL | 1 | $69.95 | |
| 5 | 3007-373 | NUT | 1 | $3.16 | |
| 6 | 3445-011 | ROPE ASSY W GRIP,STARTER 6.0X1870 | 1 | $90.95 | |
| 7 | 3445-013 | GASKET, RECOIL STARTER | 1 | $12.35 | |
| 8 | 3423-885 | BOLT,RECOIL STARTER-6X12 | 1 | $2.61 | |
| 9 | 3445-029 | CUP,STARTER 500 ATV | 1 | $122.95 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3423-053 | O RING | 1 | $6.47 | |
| 12 | 3423-542 | SPACER | 1 | $52.95 | |
| 13 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 14 | 3423-063 | O RING, ID:44, OD:2.4 | 1 | $20.63 | |
| 15 | 3402-070 | OIL SEAL,M25X36X6 | 1 | $45.95 |
