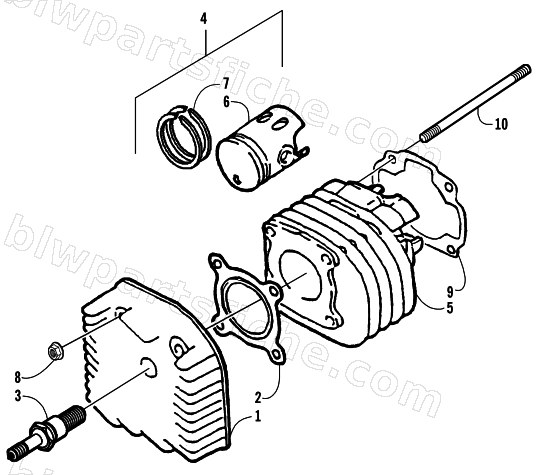

2002 Arctic Cat 90 (90CC ) — CYLINDER AND HEAD ASSEMBLY
2002 90 (90CC )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-017 | CYLINDER HEAD | 1 | $64.95 | |
| 2 | 3301-018 | CYLINDER HEAD GASKET | 1 | $4.95 | |
| 3 | 0217-716 | SPARK PLUG, NGK-BPR7HS | 1 | $4.54 | |
| 4 | 3301-019 | CYLINDER COMP | 1 | $272.95 | |
| 5 | 3301-015 | CYLINDER | 1 | $190.95 | |
| 6 | 3301-022 | PISTON | 1 | $64.95 | |
| 7 | 3301-021 | PISTON RING SET | 1 | $48.95 | |
| 8 | 3301-329 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 9 | 3301-016 | CYLINDER GASKET | 1 | $3.95 | |
| 10 | 3301-294 | STUD BOLT | 1 | $6.95 |
