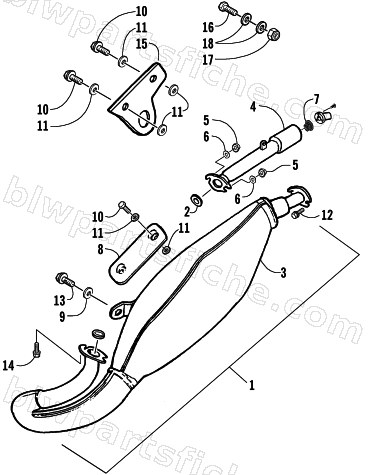

2002 Arctic Cat 90 (90CC ) — EXHAUST ASSEMBLY
2002 90 (90CC )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-088 | EXHAUST PIPE ASS'Y (W/O SPARK ARRESTER) | 1 | $365.95 | |
| 2 | 3301-086 | EXHAUST PIPE GASKET | 1 | $10.95 | |
| 3 | 3301-509 | EXHAUST PIPE FRONT | 1 | $203.95 | |
| 4 | 3301-092 | SILENCER MUFFLER | 1 | $104.95 | |
| 5 | 3301-327 | HEX FLANGE NUT WITH SERRATION | 1 | $1.95 | |
| 6 | 3301-360 | SPRING WASHER | 1 | $1.95 | |
| 7 | 3301-450 | SPARK ARRESTER | 1 | $29.95 | |
| 8 | 3301-091 | MUFFLER SHROUD | 1 | $30.95 | |
| 9 | 3301-361 | SPRING WASHER | 1 | $1.95 | |
| 10 | 3301-385 | HEX WASHER FACE BOLT | 1 | $1.95 | |
| 11 | 3301-087 | MUFFLER SHROUD PACKING | 1 | $1.95 | |
| 12 | 3301-391 | HEX WASHER FACE BOLT | 1 | $2.95 | |
| 13 | 3301-397 | BOLT FLANG | 1 | $1.95 | |
| 14 | 3301-310 | HEX HEAD PHILLIPS BOLT | 1 | $2.95 | |
| 15 | 3301-089 | INSOLATOR | 1 | $25.95 | |
| 16 | 3301-402 | HEX WASHER FACE BOLT | 1 | $10.95 | |
| 17 | 3301-283 | NYLON NUT | 1 | $1.95 | |
| 18 | 3301-357 | PLAIN WASHER | 1 | $2.95 |
