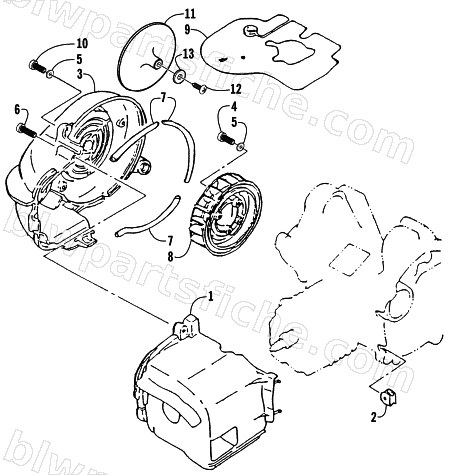

2002 Arctic Cat 90 (90CC ) — FAN AND AIR SHROUD ASSEMBLY
2002 90 (90CC )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3301-096 | CYLINDER AIR SHROUD | 1 | $20.95 | |
| 2 | 3301-268 | GROMMET | 1 | $2.95 | |
| 3 | 3301-094 | GENERATOR COVER | 1 | $22.95 | |
| 4 | 3301-288 | HEX SOCKET BOLT | 1 | $2.95 | |
| 5 | 3301-336 | PLAIN WASHER | 1 | $0.95 | |
| 6 | 3301-324 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $1.95 | |
| 7 | 3301-082 | DAMPER | 1 | $2.95 | |
| 8 | 3301-093 | FAN | 1 | $22.95 | |
| 9 | 3301-247 | DEFLECTOR | 1 | $10.95 | |
| 10 | 3301-289 | HEX SOCKET BOLT | 1 | $2.95 | |
| 11 | 3301-095 | GENERATOR OUTER COVER | 1 | $17.95 | |
| 12 | 3301-322 | TAPPING SCREW TRUSS HEAD PHILLIPS | 1 | $1.95 | |
| 13 | 3301-339 | PLAIN WASHER | 1 | $0.95 |
