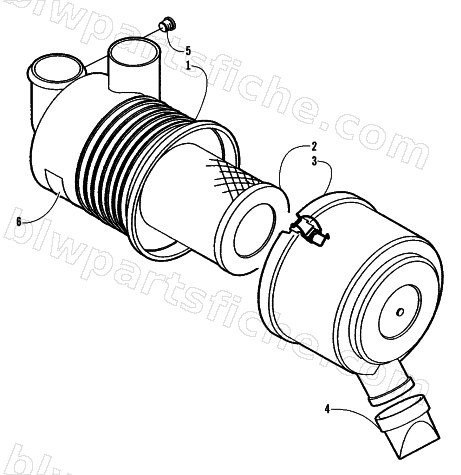

2002 Arctic Cat SBS 1000 — AIR CLEANER ASSEMBLY
2002 SBS 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3401-180 | FILTER-AIR | 1 | $114.95 | |
| 2 | 3401-488 | FILTER | 1 | $61.95 | |
| 3 | 3401-489 | COVER ASM | 1 | $78.95 | |
| 4 | 3401-490 | VALVE-VACUATOR | 1 | $22.95 |
